Securitron PDB-8F8R2 2 Amp, 8 Glass Fused Output with Relays, Fire Trigger

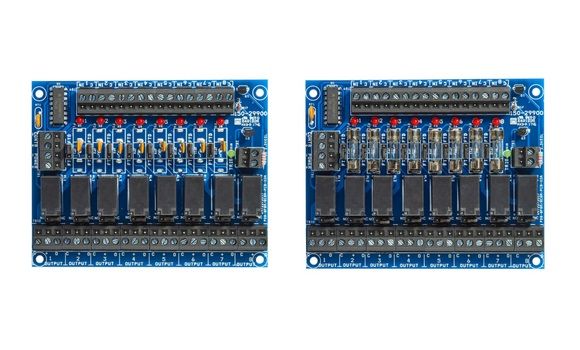

The PDB-8F8R2 from Securitron is a versatile, compact way to distribute and control power for Access Control Systems with Fire Alarm Interface. This Access Control board is an 8 position power distribution board with individual relays with input control for each output.

Features

• 8 Heavy duty Relays: Each relay comes with individual inputs and status LEDs, ensuring users can monitor the status of each output easily.
• Flexible Activation: Relay inputs can be activated from low current open collector, normally closed, or normally open switches, providing versatile control options.
• EOL Fire Interface: An end-of-line resistor master trigger de-energizes all enabled output relays, enhancing fire safety and compliance.
• Universal Power Input: Accepts 12-28VDC power, making it compatible with a variety of systems (nominal 12-24VDC).
• Class 2 Compliance: The 8C8R is class 2 power limited, ensuring safe installation without the risk of overload.
• Wiring Requirements: Class 1 wiring is required unless powered by specifically listed UL 294, UL 603, ULC S318, or ULC S533 power supplies for safety and adherence to standards.
• Fuse Circuit Breakers: Optional availability offers enhanced safety against overloads and short circuits.
• Output Configuration: Each output can be configured for fire trigger enabled/disabled, and choose between normally open or normally closed options for custom control.
• Continuous and Relay Outputs: Outputs 1-8 feature both protected continuous and relay-controlled outputs for flexible operation.
• Isolated Power Options: Users can opt to isolate control power and main lock power using separate power supplies for enhanced security and management.
