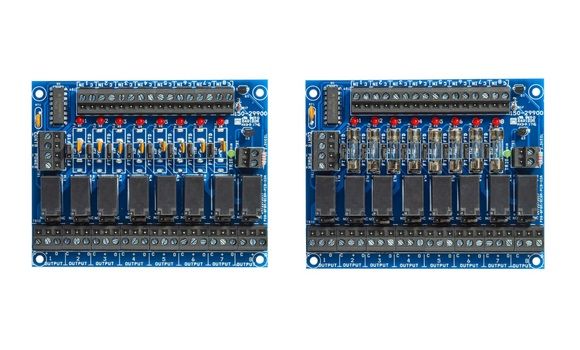

Securitron PDB-8C8R1 1 Amp, 8 PTC Polyswitch Output with Relays, Fire Trigger

The PDB-8C8R1 from Securitron is a versatile, compact way to distribute and control power for Access Control Systems with Fire Alarm Interface. This Access Control board is an 8 position power distribution board with individual relays with input control for each output.

Securitron PDB-8C8R1 Features

• 8 Heavy Duty Relays: Each relay comes with individual inputs and status LED’s for clear operational visibility.
• Flexible Relay Inputs: Relay inputs can be activated from low current open collector, normally closed or normally open switch, enhancing compatibility with various systems.
• Fire Interface Master Trigger: End of Line Resistor interface de-energizes all output relays that are enabled during a fire emergency, ensuring safety compliance.
• Universal Power Input: Operates on universal 12 – 28VDC power input (nominal 12-24VDC), offering versatility in installation.
• Class 2 Power Limited: The 8C8R model maintains class 2 power limitations for safe operation.
• Wiring Requirements: Class 1 wiring is necessary for 8F8R unless powered by a compliant UL listed power supply, ensuring enhanced safety standards.
• PTC Circuit Breakers: Available with PTC circuit breakers, providing added surge protection.
• Configurable Outputs: Each output can be individually configured for fire trigger (FT) enabled or disabled, and N/O or N/C options, allowing for tailored functionality.
• Protected Outputs: Each of the 8 outputs features a protected continuous output, in addition to a relay-controlled output for greater reliability.
• Isolated Power Options: Control power and main lock power can be isolated with separate power supplies as per user preference, enhancing system flexibility.
