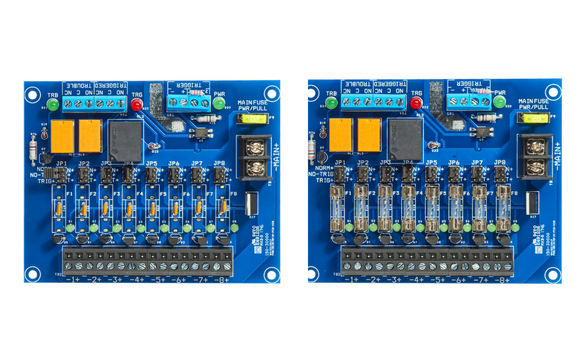

Securitron PDB-8C1R2 Power Distribution 8 PTC Polyswitch Output, 2 Amp with Fire Trigger/Relay

The Securitron PDB-8C1R2 Power Distribution is an advanced control interface designed to convert a main non-power limited DC power source into 8 power-limited outputs, providing seamless integration with Fire Alarm Control Panels. With individual output controls and reliable safety features, this power distribution unit ensures optimal performance and protection for your security systems.

Securitron PDB-8C1R2 Power Distribution Features

• 8 Power Limited Outputs: Auto-resetting outputs ensure continuous operation and reliability without manual intervention.
• Circuit Breakers: Integrated circuit breakers for model 8C1R offer enhanced safety by protecting against overloads.
• Individually Selectable Outputs: Each output can be customized to turn ON, OFF, or remain ON based on panel triggers, providing flexible control.
• Multiple Trigger Options: Outputs can be triggered via voltage, reverse polarity, or supervised N/O/N/C switches for versatile compatibility.
• Trigger Status Indication: Form C contacts and a red LED display (TRG) indicate if outputs are triggered, allowing for easy monitoring.
• Trouble Indication: Form C contacts and a green LED (TRB) alert if a circuit breaker trips, main fuse blown, or no input power, ensuring prompt responses to issues.
• Power Operation Range: The unit operates efficiently with 12-28VDC, with a nominal value of 12-24VDC.
• Removable Terminal Blocks: Each output pair features a removable terminal block and green status LED for easy installation and maintenance.
• Main Power Indication: A green status LED indicates main power availability, ensuring consistent functionality.
• UL Listed Quality: This unit is UL Listed for integration in access control and burglar alarm systems, assuring compliance with safety standards.

Securitron PDB-8C1R2 Technical Specifications
