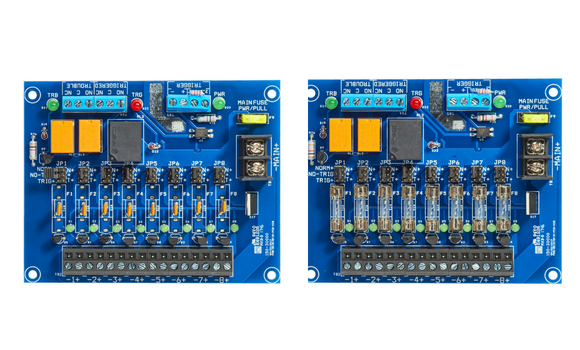

Securitron PDB-8C1R1 Power Distribution 8 PTC Polyswitch Output, 1 Amp with Fire Trigger/Relay

The Securitron PDB-8C1R1 Power Distribution unit is designed to seamlessly convert a main non-power limited DC power source into 8 power-limited outputs, specifically tailored for Fire Alarm Control Panel integration. Each output can be individually configured, allowing for enhanced versatility in triggering operations – perfect for advanced access control and burglar alarm systems.

Securitron PDB-8C1R1 Features

• 8 Power Limited Outputs with Auto-Resetting: Ensures continuous operation without the need for manual reset, enhancing reliability.
• Circuit Breakers for model 8C1R: Provides advanced protection against overload, contributing to system longevity.
• Individually Selectable Outputs: Choose to Turn On, Turn Off, or keep always ON based on specific triggering needs for customized performance.
• Multiple Trigger Options: Compatible with:
  - Voltage or Reverse polarity (optically isolated)
  - N/O or N/C switch with supervised EOL for flexible integration with existing systems.
• Form C Contacts and Trigger Status LEDs: Clear visual indicators for TRIGGERED status (Red LED) improve monitoring and ease of use.
• TROUBLE Status Indicators: Green LED shows potentially critical issues such as tripped circuit breakers or blown fuses, ensuring prompt maintenance actions.
• Wide Operating Voltage: Functions effectively within a range of 12-28VDC; nominally operates at 12-24VDC for diverse applications.
• Removable Terminal Blocks and Status LEDs: Each output pair is easier to manage with quick-connect features and clear status indicators.
• Main Power Status LED: Provides immediate feedback on the power supply status for enhanced operational awareness.
• UL Listed Sub Assembly: Suitable for both Access Control and Burglar Alarm Systems, ensuring compliance with safety standards.

Securitron PDB-8C1R1 Detailed Specifications
