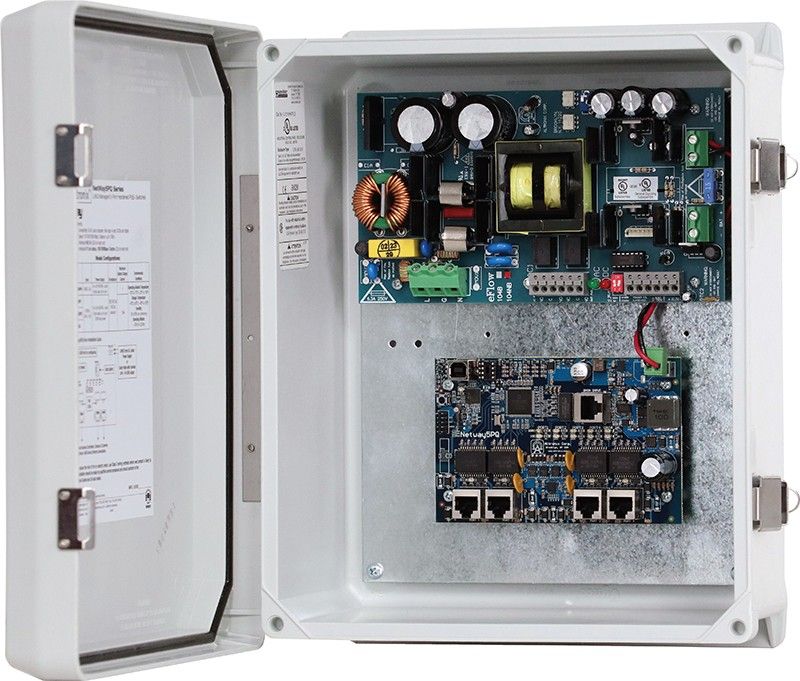

Altronix NETWAY5PQWP 5-port Managed Hardened PoE+ Switch with Power Supply/Charger

Altronix NETWAY5PQWP is a robust 5-port managed hardened PoE+ switch designed to power and connect up to four IP devices, including PoE cameras and access controllers, through a single Ethernet cable. Its embedded LINQ™ Technology enables remote monitoring and control, while providing versatility and reliability for applications such as network door access integration and video surveillance.

Altronix NETWAY5PQWP Key Features

• Input: Voltage: 120VAC, 60Hz, 4.5A ensures compatibility with standard power sources for easy installation.
• Input Fuse: 6.3A/250V provides protection against overloads, enhancing safety during operation.
• Power Output: Four (4) ports supporting both PoE/PoE+ (up to 30W) or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant for flexible device connectivity.
• Maximum Power: Total power of 120W ensures sufficient energy for multiple devices, enabling reliable performance.
• Integral Surge Protection: Protects connected devices from power surges, increasing their longevity and reliability.
• Uplink Port: Includes a single data port for expanded connectivity options.
• Ethernet Ports: Five (5) 10/100/1000 Mbps ports with RJ45 connectivity and auto-crossover feature simplify the networking process.
• Wire Type: Supports 4-pair CAT5 or better structured cable for optimal data transmission.
• Distance: Effective up to 100m, allowing flexible installations across varying environments.
• LINQ Technology: Empowers remote network power management, allowing device reset and monitoring from anywhere.
• VLAN: Supports multiple management VLAN assignments and up to 10 VLAN groups for structured network management.
• LED Indicators: Individual PoE On LEDs for each port, providing clear operational status at a glance.
• Temperature: Operates efficiently in a range of -30ºC to 70ºC (-22ºF to 158ºF) for versatile environmental compatibility.
• Relative Humidity: Functions effectively up to 85% +/- 5% humidity, ensuring performance in various conditions.
• Operating Altitude: Designed for locations from 304.8 to 2,000m, versatile for diverse installations.

Altronix NETWAY5PQWP Detailed Specifications
