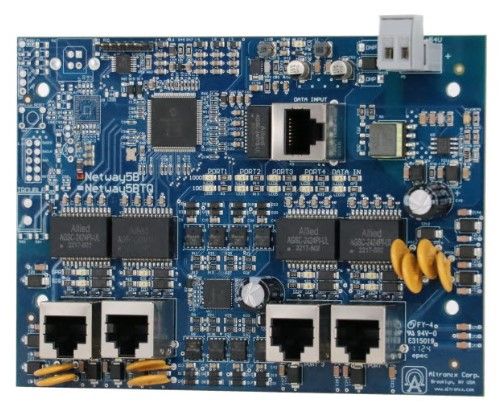

Altronix NETWAY5BT 5-Port Hardened 802.3bt 4PPoE Switch Board

The Altronix NetWay5BT is a space-saving 5-port hardened 802.3bt 4PPoE Switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance.

Altronix NETWAY5BT Features

• Input Power: 48-56V UL Listed ITE power supply for reliable operation and compliance with industry standards.
• Power Output: Maximum Power: Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 90W) ports with a total of 240W, providing ample power for demanding applications while offering integral surge protection.
• Uplink Port: Single data port facilitates easy connection to other network devices, enhancing versatility.
• Ethernet Ports: Five (5) 10/100/1000 Mbps ports with RJ45, auto-crossover support allowing for simple installation and compatibility with various network devices.
• Distance: Up to 100m for reliable data transmission over extended distances, ensuring performance in diverse environments.
• Indicators (LED): Individual PoE On LEDs and IP Link status indicators for instant feedback on the operational status of each port.
• Operating Temperature: 240W: – 30ºC to 55ºC (– 22ºF to 131ºF); ensures functionality in a range of environments.
• Storage Temperature: -40ºC to 85ºC (-40º to 185ºF), allowing for safe storage in extreme conditions.
• Relative Humidity: 85% +/- 5% ensuring optimal performance in humid environments.
• Operating Altitude: From -304.8 to 2,000m, providing flexibility for installation in various locations.

Altronix NETWAY5BT Detailed Specifications
