Linear MCS109207 Wiring Harness Adaptor Connects 3-Terminal Receiver to 2-Terminal Operator

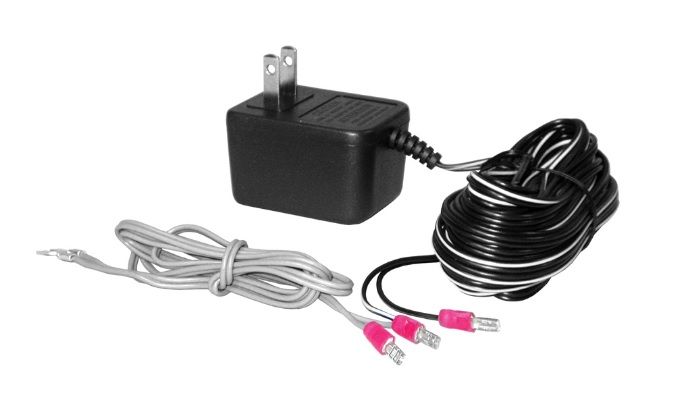

The MCS109207 from Linear is a wiring harness which is designed for remote placement of a 3-terminal garage door operator receiver. The harness adapts Multi-Code 109020 and 309013 3-terminal receivers with push-on terminals to 2-terminal operators. The harness is prewired with three push-on terminals, a 24 VAC power transformer with 25-foot leads, and a 2-wire/2-terminal lead to connect to the operator's pushbutton terminals.

Linear MCS109207 Wiring Harness Features

• Connects 3-terminal receiver to 2-terminal operator: Seamlessly adapts your existing system for improved functionality and compatibility.
• 24 VAC @ 75 mA transformer included: Powers your operator efficiently, ensuring reliable performance.
• 25 feet of transformer wire: Provides flexibility in installation, allowing for optimal placement of components.
• Push-on lugs for 109020 and 309013 receivers: Easy and secure connections, eliminating the need for special tools.
• 2-conductor with spade lugs for operator pushbutton terminal connection: Simplifies linkage to your garage door's pushbutton terminals for quick setup.

Linear MCS109207 Detailed Specifications
