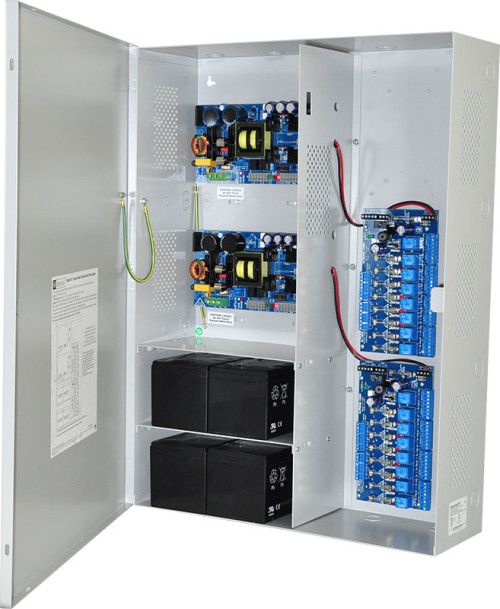

Altronix MAXIMAL77FV Access Power Controller w/ Power Supply/Chargers, 16 Fused Relay Outputs

Introducing the Altronix MAXIMAL77FV Access Power Controller, designed to provide reliable power distribution and control for access control systems and accessories. This robust unit converts a 220VAC input into sixteen independently controlled 24VDC outputs, ensuring seamless operation of devices such as mag locks and electric strikes. With numerous fail-safe features and versatile input/output options, the MAXIMAL77FV is an ideal choice for enhancing security systems in various settings.

Features

Altronix MAXIMAL77FV Access Power Controller Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 5.4A input for stable performance.
• Power Supply Input Options: Two common or isolated power inputs, allowing flexibility in power management.
• Access Control Trigger Inputs: Sixteen open collector or normally open (NO) inputs for versatile triggering mechanisms.
• 24VDC Outputs: High-quality outputs support various access control devices.
• Maximum Output Current: 24VDC @ 9.6A plus another 24VDC @ 9.6A for high-demand situations.
• Fail-Safe and Fail-Secure Outputs: Sixteen outputs can be configured for security redundancy and flexibility.
• Unswitched Auxiliary Outputs: Sixteen 2.5A rated outputs for additional power needs without interrupting service.
• Thermal and Short Circuit Protection: Ensures unit safety with automatic reset capabilities.
• Fire Alarm Disconnect Feature: Individually selectable for reliability during emergencies.
• Battery Backup: Built-in charger and automatic switch over to maintain power during AC failure.
• Visual Indicators: Red/green LEDs provide quick status updates on system and power; essential for troubleshooting.
• Operating Temperatures: Designed to function in a range from 0° C to 49° C (32° F to 120° F), ensuring reliability in various environments.
