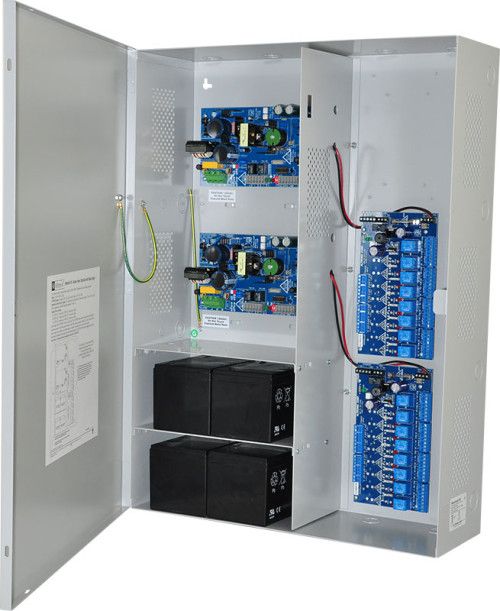

Altronix MAXIMAL77FDV Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs

The Altronix MAXIMAL77FDV Access Power Controller is designed to efficiently distribute and manage power for access control systems and accessories. With the capability to convert 220VAC into sixteen independently controlled 24VDC outputs, this controller ensures reliable operation of devices like Mag Locks and Electric Strikes. Enhanced with features like Fail-Safe and Fail-Secure modes, battery backup, and fire alarm integration, the MAXIMAL77FDV is a versatile solution for any security setup.

Altronix MAXIMAL77FDV Access Power Controller Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 5.4A input for reliable power supply.
• Power Supply Input Options: Two common input options for easy power integration and flexibility with external supplies.
• Trigger Inputs: Sixteen adaptable inputs (normally open or open collector) for versatile triggering from various devices.
• Output: Provides 24VDC outputs for efficient power distribution across connected devices.
• Maximum Output Current Options: Two independent outputs at 9.6A each for robust operation.
• Fail-Safe/Fall-Secure Modes: Sixteen independently controlled outputs to support varied security requirements (auto-resettable).
• AUX Power Outputs: Sixteen unswitched power outputs rated at 2.5A for additional devices.
• Protection Features: Includes thermal and short circuit protection with auto reset for safety and reliability.
• Fire Alarm Disconnect: Individually selectable for any or all outputs for enhanced emergency responsiveness.
• Battery Backup: Integrated charger for seamless transfer to battery supply during AC failure, ensuring continuous operation.
• Visual Indicators: Equipped with LEDs to provide clear status on output triggering and power conditions.
• Supervision: AC failure and battery supervision with selectable notification settings to ensure optimal performance.

Altronix MAXIMAL77FDV Detailed Specifications
