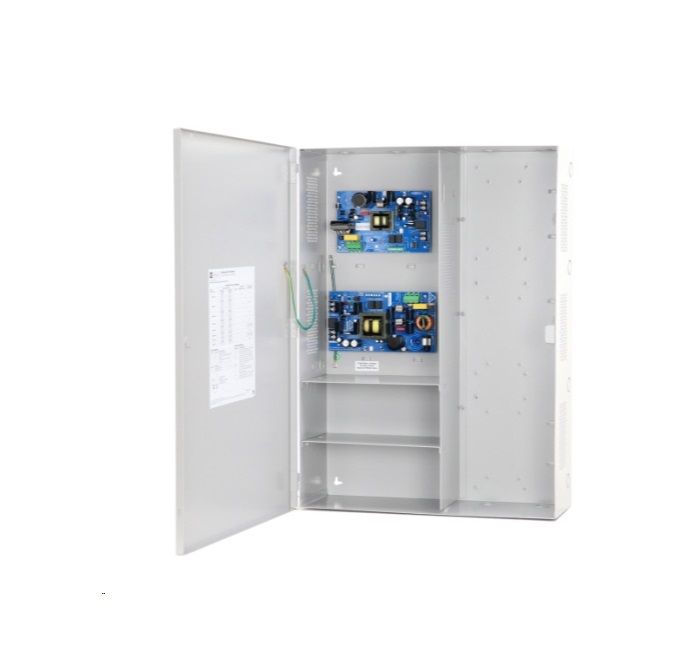

Altronix MAXIMAL77EV Power Supply Charger, Expandable, Dual 24VDC outputs @ 9.7A each
SKU
MAXIMAL77EV
Model No
MAXIMAL77EV
$736.18
Product Highlights
- AC fail supervision (form "C" contacts)
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours
- Low battery and battery presence supervision (form "C" contact)
- Automatic switch over to stand-by battery when AC fails
- Zero voltage drop when unit switches over to battery backup (AC failure condition)
Speak to an expert
The Altronix MAXIMAL77EV Power Supply Charger is engineered for system designers and installers who need flexible power options for Access Control and Fire Alarm applications. With dual 24VDC outputs and a robust set of monitoring features, it ensures reliability and efficiency while providing the versatility needed for various setups.
Altronix MAXIMAL77EV Key Features
- Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 6.25A input ensures compatibility with standard power sources.
- Output: Provides dual 24VDC outputs, allowing for efficient power distribution across multiple devices.
- Maximum Output Current: Each output can deliver 9.7A, maximizing system performance and stability.
- Filtered and Electronically Regulated Outputs: Ensures consistent high-quality power for sensitive equipment.
- Thermal and Short Circuit Protection: Features auto-reset capabilities for enhanced safety and reliability.
- Fuse Ratings: Input fuse rated at 10A/250V provides protection against overloads.
- AC Fail Supervision: Alerts users to power issues, ensuring prompt responses to power failures.
- Battery Backup: Automatic switchover to standby batteries during AC outages ensures continuous operation.
- Visual Indicators: Equipped with LED indicators for easy monitoring of AC input and DC output status.
- Environmental Conditions: Operates in temperatures from 0° C to 49° C, making it suitable for diverse environments.
Altronix MAXIMAL77EV Detailed Specifications
| Feature | Details |
|---|---|
| Input Voltage | 220VAC (working range 198VAC - 256VAC) |
| Input Frequency | 50/60Hz |
| Input Current | 6.25A |
| Output Voltage | 24VDC |
| Output Current | 9.7A per output (20A total) |
| Protection | Thermal and short circuit protection with auto reset |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | Approx. 246 BTU/Hr |
| AC Input VA Requirement | 1375VA |
SKU  | MAXIMAL77EV |
|---|---|
| Manufacturer | Altronix |
| Type | Indoor Wallmount |
| Power Options | 10 amp @ 12VDC, 10 amp @ 24VDC |
| Input Voltage | 220VAC |
| Output Protection | Fuse |
| Certification | CE |
