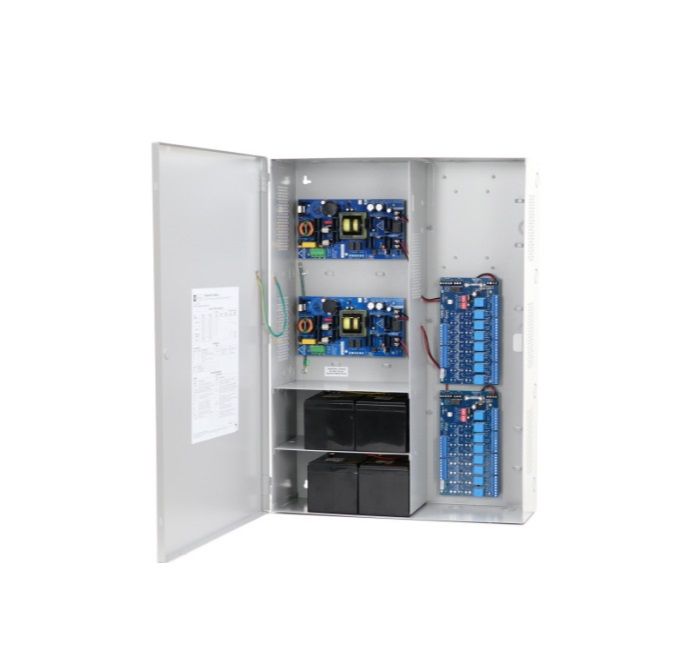

Altronix MAXIMAL77DV Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs

Introducing the Altronix MAXIMAL77DV Access Power Controller, an advanced solution for distributing and switching power to access control systems and accessories. This powerful unit converts 220VAC input into sixteen independently controlled 24VDC outputs, ensuring reliable performance for devices such as Mag Locks and Electric Strikes. With features such as PTC protection, fail-safe/fail-secure options, and a built-in battery backup charger, the MAXIMAL77DV ensures your access systems remain operational during power interruptions.

Altronix MAXIMAL77DV Access Power Controller Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, enabling versatile global compatibility.
• Power supply input options: Offers both common and isolated power inputs for flexibility and installation convenience.
• Input options: Sixteen independently controlled inputs (normally open or open collector) for increased adaptability with various access control systems.
• Output: 24VDC outputs with 9.7A maximum current, suitable for diverse access control devices.
• Mechanical Reliability: Features fail-safe/fail-secure power outputs that are auto-resettable to enhance system uptime.
• Safety Features: Includes thermal and short circuit protection with auto-reset for added safety and reliability.
• Fire Alarm disconnect: Individually selectable for any or all outputs, ensuring compliance with safety regulations.
• Battery Backup: Ensures uninterrupted operation with automatic switch over to standby battery during AC failure.
• Visual Indicators: Red and green LEDs provide clear, immediate feedback on output status and fire alarm conditions.
• Temperature Ratings: Operating temperature range of 0° C to 49° C ensures reliable performance in varying environments.

Altronix MAXIMAL77DV Detailed Specifications
