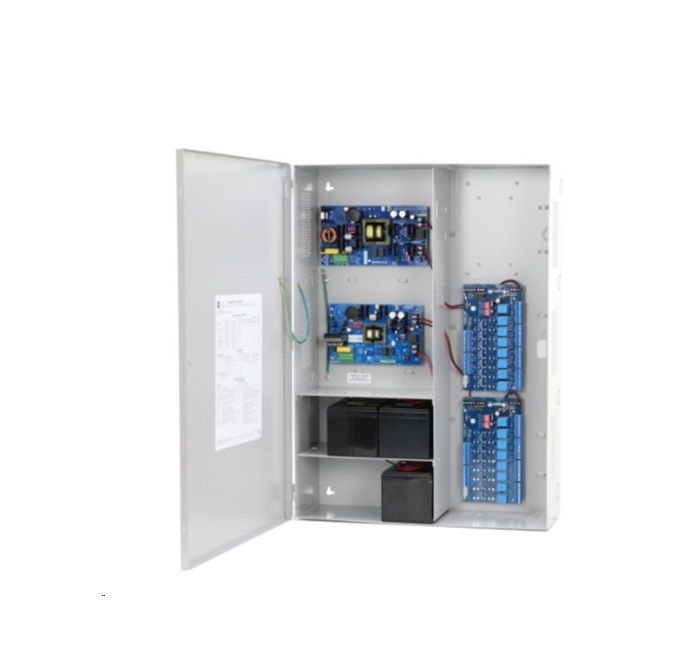

Altronix MAXIMAL75DV Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs

The Altronix MAXIMAL75DV Access Power Controller is a robust solution designed for efficiently distributing and switching power to various access control systems and accessories. With 16 independently controlled outputs and versatile input options, this unit provides reliable operation for devices like Mag Locks and Electric Strikes. Its advanced features, including thermal protection and a built-in charger for battery backup, ensure reliable performance in critical situations, making it ideal for securing entrances and monitoring alarms.

Altronix MAXIMAL75DV Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 3.7A input ensures compatibility with various power sources.
• Power supply input options: Two common inputs for efficient power distribution or isolated inputs for flexibility, providing a maximum of 10A total.
• Input options: Sixteen normally open (NO) or open collector inputs allow for versatile triggering from various control systems.
• Output: Dual 12VDC and 24VDC outputs cater to diverse device power requirements.
• Maximum output current Options: 24VDC @ 9.7A plus 12VDC @ 9.5A allows for substantial power distribution across multiple devices.
• Filtered and regulated outputs: Ensures stable power supply and protection against fluctuations for safe operation.
• Thermal and short circuit protection: Automatic reset enhances safety and reliability during operation.
• Fire Alarm disconnect: Individually selectable for all outputs to enhance emergency response capabilities.
• Battery Backup: Built-in charger supports sealed lead acid or gel batteries, ensuring operation during power outages.
• Visual Indicators: Red and green LEDs provide real-time status of output and fire alarms, allowing for quick diagnostics.

Altronix MAXIMAL75DV Detailed Specifications
