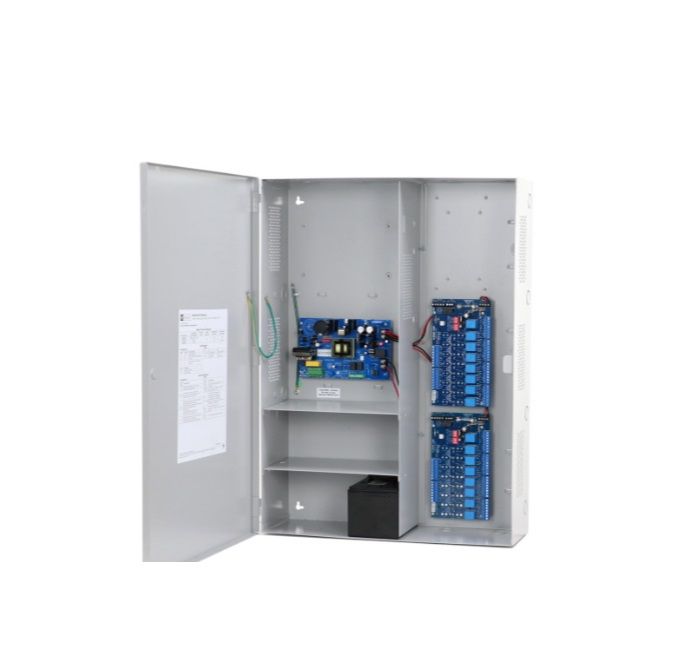

Altronix MAXIMAL5DV Access Power Controller w/ Power Supply/Charger, 16 PTC Class 2 Relay Outputs

The Altronix MAXIMAL5DV Access Power Controller is designed to efficiently distribute and manage power for access control systems and devices. This versatile unit converts a wide-range 220VAC input into sixteen independently controlled 12VDC outputs, each protected with PTC. With features like Fail-Safe and Fail-Secure output modes, built-in fire alarm disconnect options, and battery backup capabilities, it’s an ideal choice for enhancing security and accessibility in various settings.

Altronix MAXIMAL5DV Access Power Controller Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.3A input, ensuring compatibility with widespread electrical systems.
• Power supply input options: Two common power inputs and two isolated inputs allow for flexible integration while safeguarding against power interruptions.
• Input options: Supports sixteen normally open and/or open collector inputs for versatile triggering from various access control devices.
• Output: Provides 12VDC outputs to power a range of access control hardware seamlessly.
• Maximum output current: Delivers 12VDC @ 9A, capable of supporting multiple devices without compromising on power.
• Fail-Safe and Fail-Secure capabilities: Allows customizable configurations for different security needs with sixteen independently controlled outputs.
• Auxiliary power outputs: Features sixteen additional unswitched outputs rated @ 2A, offering extra power flexibility.
• Built-in power supply: Offers filtered and electronically regulated outputs, ensuring stable performance for connected devices.
• Thermal and short circuit protection: Protects against overheating and faults with auto-reset functionality for enhanced reliability.
• Fire Alarm disconnect: Individually selectable for each output, providing critical safety features during emergencies.
• Battery Backup: Built-in charger allows automatic switch over to backup, ensuring continuous operation during power failures.
• Visual Indicators: Red and green LEDs provide clear status updates on output triggers and alarm activations for user-friendly monitoring.
• Operating Temperature: Designed to function in varied temperatures (0° C to 49° C), making it suitable for diverse environments.

Altronix MAXIMAL5DV Detailed Specifications
