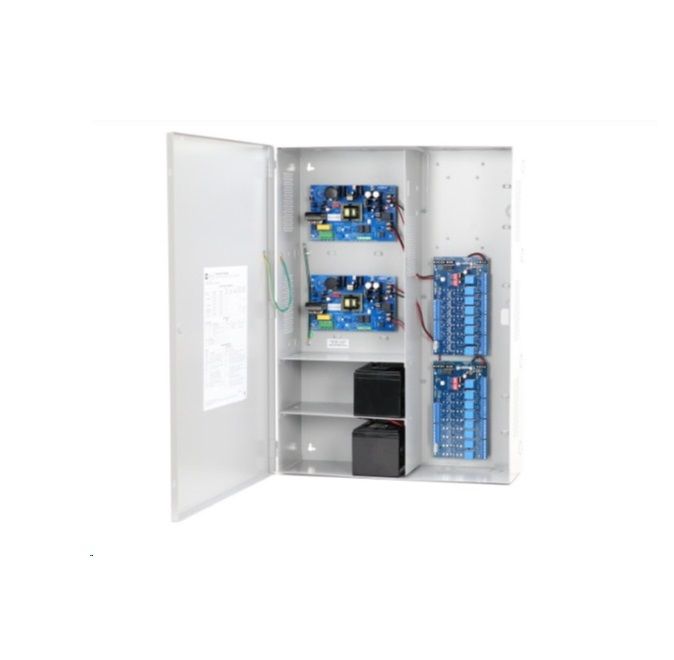

Altronix MAXIMAL55DV Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs
SKU
MAXIMAL55DV
Model No
MAXIMAL55DV
$957.00
Product Highlights
- Sixteen (16) independently controlled outputs can be Fail-Safe and/or Fail-Secure power outputs (auto-resettable)
- Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 2A)
- Filtered and electronically regulated outputs (built-in power supply)
- Thermal and short circuit protection with auto reset
- ACM8CB boards main fuse is rated at 10A Output PTCs are rated @ 2.5A
Speak to an expert
Introducing the Altronix MAXIMAL55DV Access Power Controller with Power Supply/Chargers - a robust solution designed to efficiently distribute and manage power for access control systems. With 16 independently controlled PTC protected outputs, it transforms 220VAC input into reliable 12VDC power, ideal for driving a wide range of access control devices. This unit features programmability for Fail-Safe and Fail-Secure modes, emergency egress functionality, and advanced supervision capabilities, making it an essential component for any security infrastructure.
Altronix MAXIMAL55DV Key Features
- Power Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, ensuring compatibility with standard electrical systems.
- Multiple Power Options: Choose between common and isolated power inputs to accommodate your specific setup needs, with a maximum total current of 10A.
- Versatile Trigger Inputs: Sixteen (16) options for normally open (NO) or open collector inputs provide flexibility for integration with various access control systems.
- Independently Controlled Outputs: Sixteen (16) 12VDC outputs allow separate control for different access devices, enhancing operational efficiency.
- Fail-Safe and Fail-Secure Configuration: Outputs can be configured to operate in either fail-safe or fail-secure modes to meet security requirements.
- Advanced Fire Alarm Integration: Individually selectable disconnect options for effective fire alarm system management, ensuring safety during emergencies.
- Comprehensive Supervision Features: Robust monitoring capabilities, including AC fail supervision and low battery status, to maintain system integrity.
- Battery Backup System: Built-in charger and automatic switch-over to standby battery during AC failure to ensure continuous operation.
- Visual Status Indicators: LED indicators provide real-time feedback on output status and system health, enabling quick diagnostics.
- Temperature Tolerance: Operating range from 0° C to 49° C ensures reliable performance in varied environmental conditions.
Altronix MAXIMAL55DV Detailed Specifications
| Feature | Details |
|---|---|
| Input Voltage | 220VAC (working range 198VAC - 256VAC), 50/60Hz |
| Input Current | 2.6A |
| Output Voltage | 12VDC |
| Maximum Output Current | 12VDC @ 9.5A (dual output) |
| Trigger Inputs | 16 Normally Open (NO) or Open Collector options |
| Power Output | 16 Independently Controlled Outputs (auto-resettable) |
| Auxiliary Outputs | 16 Outputs rated 2A (unswitched) |
| Fire Alarm Disconnect | Selectable for any or all outputs |
| Visual Indicators | Red and Green LEDs for output status and FACP trigger |
| Temperature Range | Operating: 0° C to 49° C, Storage: -20° C to 70° C |
| Humidity | Relative Humidity 85% +/- 5% |
| BTU/Hr | 117 BTU/Hr |
SKU  | MAXIMAL55DV |
|---|---|
| Manufacturer | Altronix |
| Number of Outputs | 2 |
| Enclosure | Yes |
