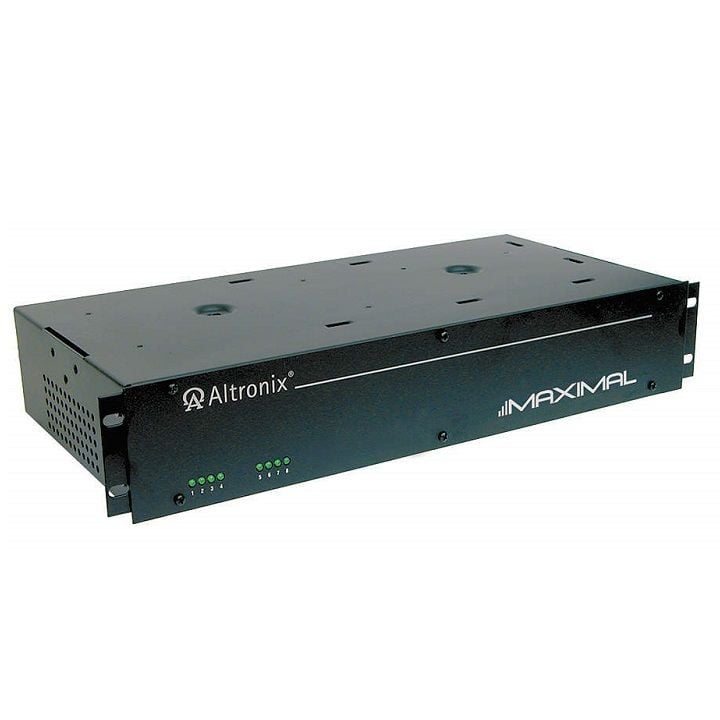

Altronix MAXIMAL3RHD Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 12/24VDC @ 6A, 115VAC, 2U

Maximal 3RHD rack mount access power controller distributes and switches power to access control systems and accessories. It converts a 115VAC 50/60Hz input into eight (8) independently controlled 12VDC or 24VDC PTC protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.

Altronix MAXIMAL3RHD Access Power Controller Features

• Power Output: 115VAC 60Hz., 1.9 amp, providing reliable power for all your access control systems.
• Input Options: Normally closed [NC] or normally open [NO] dry contact inputs (switch selectable) for versatile control configurations.
• Voltage Range: 12VDC or 24VDC @ 6 amp total output current, allows for adaptability to various devices.
• Protection: Eight (8) PTC protected outputs safeguard your devices from overload.
• Current Limitation: Maximum current per ACM8R-M output is 2 amp, ensuring optimal functionality without damage.
• Operation Modes: Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state fuse protected outputs enhance security options.
• Safety Features: Thermal and short circuit protection with auto reset prevents failure during operation.
• Fire Alarm Integration: Latching or Non-Latching fire alarm reset switch individually selectable for each output for tailored emergency handling.
• Remote Control: Remote reset capability for latching Fire Alarm Interface mode enhances usability.
• Visibility: Individual Output Status LEDs located on the front panel provide real-time operational feedback.
• Charging Capability: Maximum charge current .7 amp ensures batteries are maintained effectively.
• Backup Power: Automatic switch over to stand-by battery when AC fails guarantees uninterrupted service.
• Seamless Transition: Zero voltage drop when unit switches over to battery backup (AC failure condition) protects connected devices.
• Monitoring: AC fail supervision (form “C” contact) enhances system reliability.
• Battery Supervision: Low battery and battery presence supervision (form “C” contact) ensures operational readiness.
• Installation Ease: Removable terminal blocks with locking screw flange simplify installation and maintenance.
• Cord Design: 3-wire line cord contributes to robust and safe electrical connections.
• Power Control: Illuminated master power disconnect circuit breaker with manual reset for enhanced operational safety.
