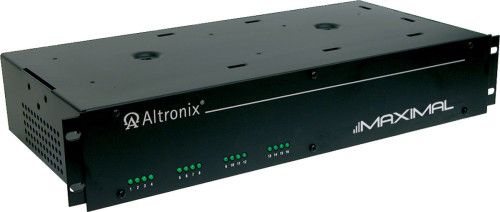

Altronix MAXIMAL3RDV Access Power Controller w/ Power Supply/Charger, 16 PTC Relay Outputs

The Altronix MAXIMAL3RDV Access Power Controller w/ Power Supply/Charger is designed to efficiently distribute and manage power to access control systems and ancillary devices. Featuring sixteen independently controlled outputs, this powerhouse ensures reliable operation for various access control devices, while providing advanced features such as thermal and short circuit protection, battery backup capabilities, and a built-in fire alarm interface for enhanced safety and security.

Features

Altronix MAXIMAL3RDV Access Power Controller Features

• Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.0A - Enables versatile power input options for varied settings.
• Outputs: 12VDC or 24VDC @ 6A total output current - Supports high-performance access control hardware efficiently.
• Sixteen PTC protected outputs: Auto-resettable for enhanced safety and ease of maintenance.
• Fault Tolerant Operation: Individually selectable Mag Lock/Strike outputs (Fail-Safe, Fail-Secure) - Ensures adaptability to different security needs.
• Fire Alarm Interface: Latching or Non-Latching capabilities and remote reset option - Enhances emergency management and safety protocols.
• Visual Indicators: Output Status LEDs on the front panel - Provides user-friendly monitoring of system status.
• Battery Backup: Automatic switch over and zero voltage drop during AC failure - Guarantees uninterrupted power supply for critical systems.
• Supervision Features: AC fail notification, low battery, and battery presence supervision - Increases reliability and proactive maintenance of the system.
• Additional Features: Removable terminal blocks, illuminated master power disconnect - Facilitates easy installation and safety.
• Temperature Range: Operating from 0° C to 49° C (32° F to 120° F) - Suitable for diverse environmental conditions.

Altronix MAXIMAL3RDV Access Power Controller Specifications
