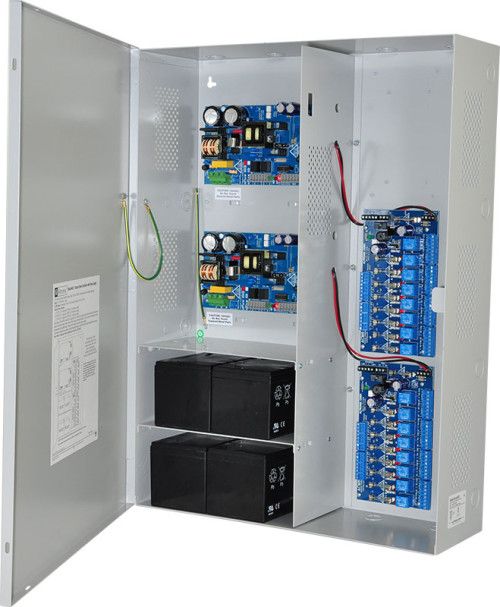

Altronix MAXIMAL33FV Access Power Controller w/ Power Supply/Chargers, 16 Fused Relay Outputs

Introducing the Altronix MAXIMAL33FV Access Power Controller with Power Supply/Chargers, designed to efficiently meet the demands of access control systems. This unit features 16 fused relay outputs and transforms 220VAC into reliable 12VDC or 24VDC power, ensuring robust and secure operation for a wide variety of access control hardware. With advanced features such as fire alarm disconnects, battery backup, and supervision capabilities, it excels in performance and versatility, keeping security systems operational and reliable.

Altronix MAXIMAL33FV Access Power Controller Features

• Input: 220VAC input (working range 198VAC - 256VAC), ensuring adaptability to different power sources.
• Power supply input options: Offers two common power inputs for ease of installation, flexibility with two isolated power inputs (external supply), and manages up to 10A total.
• Trigger options: Sixteen trigger inputs (NO and open collector), providing versatile activation methods for access control.
• Output: Provides configurable 12VDC and 24VDC outputs for compatibility with various devices.
• Maximum output current options: Configurable outputs allowing pairing of supplies that cater to different device power needs.
• Independently controlled outputs: Sixteen outputs enabling tailored power management for multiple devices.
• Fused outputs: Safety-assured by 5A rated relay outputs, enhancing durability and reliability.
• Auxiliary outputs: Sixteen auxiliary power outputs rated 2.5A for additional device support.
• Thermal protection: Built-in safety features that prevent overheating and short circuits, ensuring longevity.
• Fire Alarm disconnect: Individual selection for all outputs offering safety and compliance with security standards.
• Battery backup: Integrated charger for seamless power transition during AC failure, ensuring uninterrupted operation.
• Visual indicators: LED indicators for real-time monitoring of input/output status and alarm triggers.
• Supervision features: Built-in AC fail and low battery supervision to maintain system integrity.
• Temperature range: Operates reliably in 0° C to 49° C (32° F to 120° F), suitable for various environments.

Altronix MAXIMAL33FV Detailed Specifications
