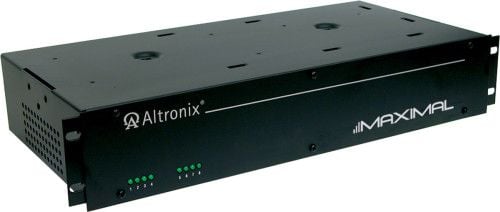

Altronix MAXIMAL1RHDV Access Power Controller w/ Power Supply/Charger, 8 PTC Relay Outputs

The Altronix MAXIMAL1RHDV Access Power Controller is designed to effectively manage and distribute power to access control systems and accessories. This reliable unit transforms a 220VAC input into eight independently controlled 12VDC or 24VDC outputs, ensuring versatile compatibility with various hardware devices. Equipped with a robust fire alarm interface and battery backup features, it guarantees continuous operation and safety for your access control needs.

Altronix MAXIMAL1RHDV Access Power Controller Features

Input: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.0A; ensures compatibility with different power sources for reliable operation.
Trigger Inputs: Selectable NC or NO dry contact inputs; provides flexibility in system integration with various access control devices.
Outputs: 12VDC @ 4A or 24VDC @ 3A total output current; delivers sufficient power for multiple devices.
PTC Protection: Eight PTC protected outputs (auto-resettable); enhances safety by preventing overloads.
Output Modes: Individually selectable Fail-Safe/Fall-Secure modes; adapts to different security requirements for access control devices.
Fire Alarm Interface: Latching or Non-Latching reset switch; promotes compliance with safety regulations by enabling emergency features.
Visual Indicators: Status LEDs for each output; allows for easy monitoring of system operations.
Battery Backup: Built-in charger and automatic switchover; supports continuous operation even during power interruptions.
Supervision: AC fail and low battery supervision; enhances reliability by alerting the user to potential issues.
Removable Terminal Blocks: Facilitates easy installation and maintenance; improves system accessibility.

Altronix MAXIMAL1RHDV Access Power Controller Detailed Specifications

Input Voltage	220VAC (198VAC - 256VAC)
Frequency	50/60Hz
Output Voltage	12VDC @ 4A or 24VDC @ 3A
Number of Outputs	Eight (8) PTC protected outputs
Temperature Operating Range	0° C to 49° C (32° F to 120° F)
Temperature Storage Range	-20° C to 70° C (-4° F to 158° F)
Humidity	85% +/- 5%
Notification Trigger	Selectable for 30 seconds or 6 hours
Battery Backup	Built-in charger for lead acid or gel batteries
Visual Indicators	Individual Status LEDs
