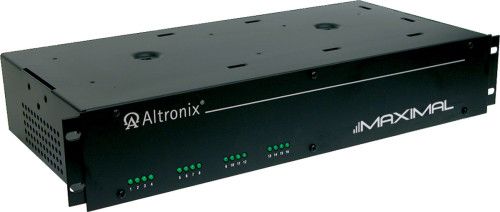

Altronix MAXIMAL1RDV Access Power Controller w/ Power Supply/Charger, 16 PTC Relay Outputs

The Altronix MAXIMAL1RDV Access Power Controller is a high-performance rack mount unit that efficiently manages and distributes power to various access control systems and related hardware. With its capability to convert 220VAC input into sixteen independently controlled 12VDC or 24VDC outputs, this controller ensures high reliability and flexibility for critical security systems. Key features like PTC protection, Fire Alarm Interface integration, and battery backup support further enhance its suitability for robust access control applications.

Features

Altronix MAXIMAL1RDV Access Power Controller - Key Features

• Input: Accepts 220VAC (198VAC - 256VAC), allowing compatibility with a wide range of electrical systems.
• Outputs: Provides 12VDC @ 4A or 24VDC @ 3A total output current for versatile power options.
• PTC Protected Outputs: Features sixteen auto-resettable outputs, ensuring reliable operation during fault conditions.
• Flexible Modes: Supports Fail-Safe and Fail-Secure modes, offering adaptability for different access control needs.
• Fire Alarm Interface: Enables emergency egress capabilities and alarm monitoring for enhanced safety.
• Battery Backup: Built-in charger with automatic switch over to ensure uninterrupted power during AC failures.
• Supervision: Provides AC fail supervision and low battery alerts, ensuring constant monitoring of the power system.
• Temperature Tolerance: Operates in a wide temperature range (0° C to 49° C), making it suitable for various environments.

Altronix MAXIMAL1RDV Detailed Specifications
