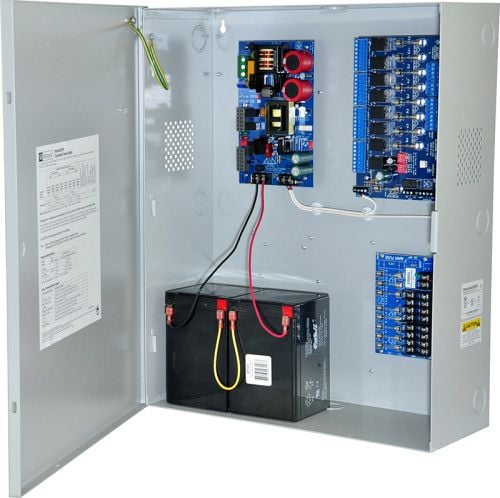

Altronix MAXFIT3F8AP Access Power Controller Kit BC750 Enclosure with eFlow6NB, ACM8, PD8UL

Altronix MaxFit3F8AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC or 24VDC fuse protected outputs and eight (8) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.

Altronix MAXFIT3F8AP Access Power Controller Kit Features

• Power Output: 12VDC/24VDC @ 6A power supply/charger ensures reliable performance for connected devices.
• Supervision:
  - AC Fail
  - Low Battery and Battery Presence
  - Low power shutdown provides enhanced safety and operational integrity.
• Outputs:
  - Eight (8) distributed 12VDC or 24VDC fuse protected outputs for secure and efficient power distribution.
  - Eight (8) independently controlled 12VDC or 24VDC fuse protected relay outputs offer flexibility in managing connected devices.
• Convenient Knockout Configuration:
  - Twelve (12) double knockouts (1” and 0.75”) streamline installation processes.
• Durable Enclosure:
  - 16 AWG powder-coated steel enclosure simplifies board layout and wire management for long-lasting use.
• Battery Accommodation:
  - Enclosure accommodates up to four (4) 12VDC/12AH batteries ensuring extended operation during power loss.

Altronix MAXFIT3F8AP Access Power Controller Kit Specifications
