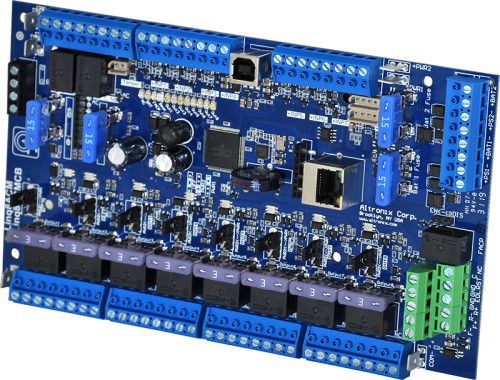

Altronix LINQ8ACM Network Access Power Controller, 8 Fused Outputs, Board

The Altronix LINQ8ACM Network Access Power Controller is a versatile dual input power management solution designed to simplify access control deployments. With eight independently controlled fused outputs, it efficiently routes power to various access control devices while enabling emergency egress and alarm monitoring capabilities. Its built-in LINQ technology ensures effective power management and diagnostics, significantly reducing system downtime and maintenance needs.

Altronix LINQ8ACM Key Features

• Two (2) Independent Low Voltage Inputs: Allows flexibility in power sourcing, ensuring consistent operation even during power failures.
• Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized, optimizing energy usage and lowering operational costs.
• Main Fuse Rating: 15/32A, providing reliable short circuit protection for enhanced system safety.
• Fuse Protected Outputs: Rated @ 2.5A per output with a total max output of 20A, ensuring safe and consistent power distribution across devices.
• Output Selectability: Any of the eight outputs can follow either Input 1 or Input 2, giving users the ability to configure their systems as needed.
• Servicing Mode: Individual outputs can be set to OFF for maintenance, enabling safe servicing without power interruptions.
• Fuses Rating: 3A/32V each, protecting against overloads and ensuring longevity of the connected devices.
• Power Supply Limitations: Total output current is determined by the power supply(s), maintaining safety protocols.

Altronix LINQ8ACM Specifications
