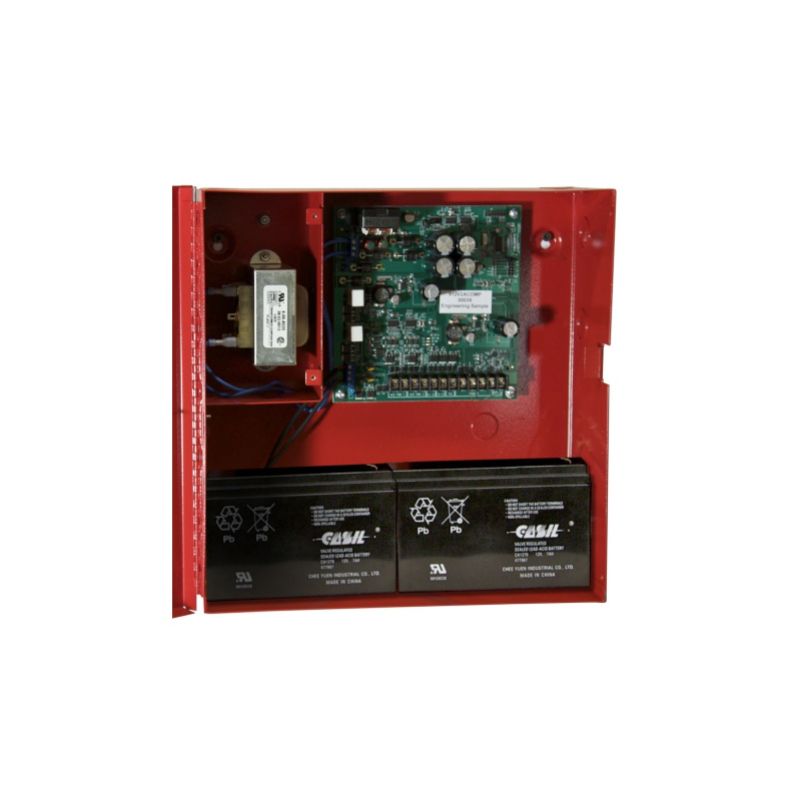

Napco GEMC-12V2APS-CF 12VDC Power Supply for Fire Bus, Remote Supervised

The GEMC-12V2APS-CF (Commercial Fire) contains a transformer mounted inside the housing that requires a licensed electrician to wire. It uses a plug-in 16.5VAC, 50VA class 2 transformer that does not require an electrician to wire. This version use the GEMC12V2ABOARD UL Listed Subassembly.

Features

• 3-Unsupervised active-low 2A outputs activated by AC Fail, Battery TBL and Micro TBL
• One supervised GEMC-Remote Bus interface
• One normally-closed (N/C) housing tamper input, identified by trouble on dedicated integral EZM zone
• 4 status LEDs
• Power supply contains integral battery charger capable of charging up to 1 pair of 12AH/12V sealed lead acid batteries
• The system monitors for low battery, no battery, brownout; monitors battery charging circuit voltage, identified by trouble on dedicated integral EZM zone
• Solid state over-current protection
• Integral housing tamper switch inputs protecting the unauthorized opening of the housing cover and a rear tamper protecting the removal of the housing from its mounting surface
• Cabinet housing included
• Automatic switchover to stand-by battery when AC fails
• In Commercial installations, the power supplies are not to be employed as a power source for local audible alarm sounding devices or for off premises alarm transmitter/communicators
