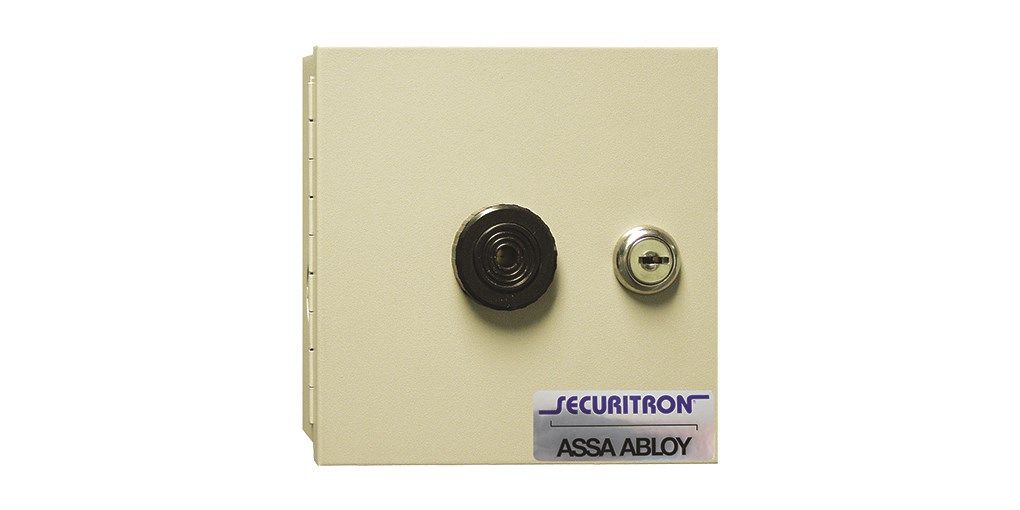

Securitron FA-XDT-24 Exit Delay Timer, 24VDC, Flush Mount with Alarm & Door
SKU
FA-XDT-24
Model No
FA-XDT-24
$189.00
Product Highlights
- Meets all code requirements including the BOCA 30 second relock function
- Nuisance delay and release times are digitally set using precise DIP switches
- Three 5A SPDT relays for interface capabilities
- External switches such as time clock scan put the XDT into different modes when delayed exit is not desired at all times
Speak to an expert
The Securitron FA-XDT-24 Exit Delay Timer offers customizable exit delays, making it perfect for environments that require varying security needs. Compatible with entry control and monitoring systems, this device enhances safety in healthcare and retail settings by providing timely alerts for patient exits and theft prevention.
Features
- Meets all code requirements: Complies with BOCA's 30-second relock function, ensuring safety and legal adherence.
- Digitally set delays: Nuisance delay and release times can be easily configured using precise DIP switches for tailored operational efficiency.
- Advanced interface capabilities: Equipped with three 5A SPDT relays for versatile integration with security systems.
- Flexible operation modes: External switches like time clock can adjust XDT modes, optimizing functionality based on specific security needs.
Securitron FA-XDT-24 Detailed Specifications
| Feature | Details |
| Model | FA-XDT-24 |
| Power Supply | 24VDC |
| Mounting Type | Flush Mount |
| Relay Type | Three 5A SPDT |
| Delay Options | Configurable via DIP switches |
| Compliance | BOCA 30-second relock function |
| Application | Healthcare and retail environments |
SKU  | FA-XDT-24 |
|---|---|
| Manufacturer | Securitron |
| Operating Voltage | 24VDC |
| Calendar | No |
| Function | Delay Timer Module |
| Relay Rating | 5 amp |
There are no related videos.
Write Your Own Review
Manuals & Specifications
FA-XDT-24-Specsheet FA-XDT-24-Installation-Instructions
