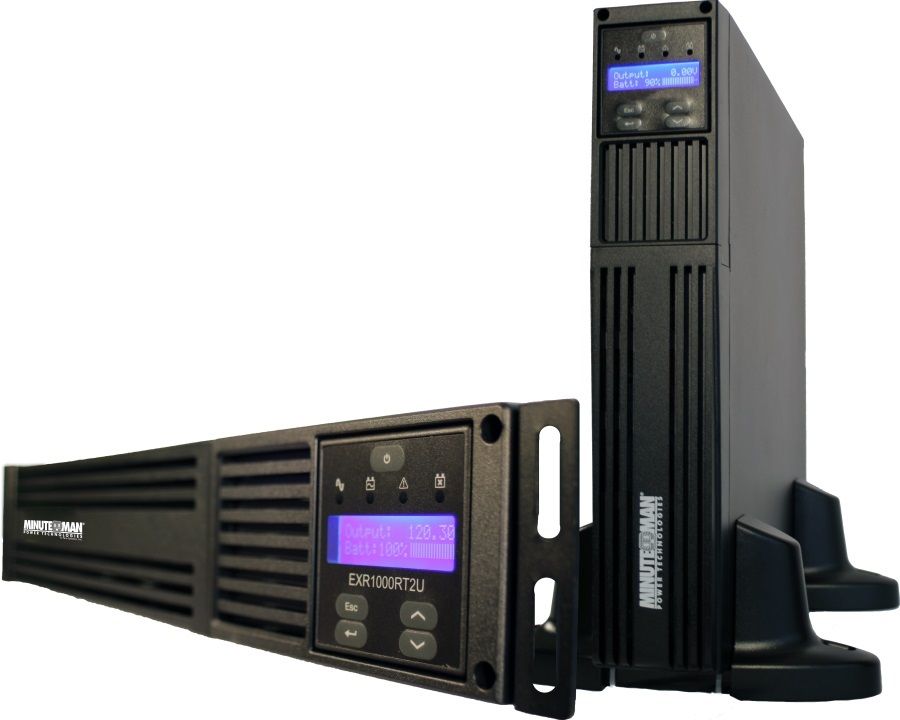

Minuteman EXR1500RTHV EXR Line Interactive Uninterruptible Power Supply
SKU
EXR1500RTHV
Model No
EXR1500RTHV
was $2,160.00 Special Price $1,236.00
Product Highlights
- 0.9 power factor - increased capacity without migrating to larger models
- NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
- UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
- Load shedding - two power banks allow equipment prioritizing for increased runtime
- Independent Battery Bypass - provides voltage regulation with surge and spike protection even when batteries are weak or dead
Speak to an expert
The Minuteman EXR1500RTHV EXR Line Interactive Uninterruptible Power Supply delivers reliable power protection for critical networking applications with its advanced features and robust performance. With true sine wave output, high efficiency, and unique configuration options such as tool-less battery replacement and an auto-recognition system for external battery packs, this UPS ensures your sensitive electronics remain operational during power disturbances.
Minuteman EXR1500RTHV UPS Features
- 0.9 power factor: increases capacity without the need for larger models, maximizing efficiency.
- NEW Alphanumeric LCD Dot Matrix display: easy access to key UPS statuses, ensuring quick monitoring and management.
- UPS configuration options via front panel: allows users to make key adjustments for optimal performance directly from the LCD.
- Load shedding: features two power banks for prioritizing equipment, extending runtime during outages.
- Independent Battery Bypass: offers voltage regulation with surge and spike protection even when batteries are weak or dead.
- Auto-recognition of external battery packs: recalibrates runtimes automatically for ongoing power needs.
- Unlimited runtime capability: ensure that additional battery packs can meet any backup power demand.
- Flexible installation: can be configured in rack or tower formats with wall mount kits available.
- Simultaneous USB, RS232, and SNMP communications: provides enhanced connectivity and monitoring options.
- Minuteman SentryHD: includes UPS monitoring and control software for comprehensive management.
- Industry-leading product warranty: includes a 3-year non-prorated warranty covering batteries, ensuring peace of mind.
- Dedicated remote Emergency Power Off (EPO) port: enhances safety and immediate shutoff options.
- 120V & 208V: available 208V models (1500 & 3000VA) offer versatility for different setups.
- cULus certification: meets safety standards with NOM certification for Mexico.
- RoHS 2 compliant: ensures eco-friendliness in manufacturing.
- Energy Star 2.0 certification: highlights energy efficiency for reduced power consumption.
Minuteman EXR1500RTHV Detailed Specifications
| Feature | Details |
|---|---|
| Model | EXR1500RTHV |
| Power Factor | 0.9 |
| Output Type | True Sine Wave |
| LCD Display | Alphanumeric Dot Matrix |
| Runtime Features | Load shedding; Auto-recognition of external battery packs |
| Batteries | Tool-less connection; Independent Battery Bypass |
| Installation Type | Rack, Tower, Wall Mount |
| Communications | USB, RS232, SNMP |
| Software Included | Minuteman SentryHD |
| Warranty | 3-Year Non-Prorated (Including Batteries) |
| Power Options | 120V & 208V available |
| Certifications | cULus, NOM (Mexico), RoHS 2, Energy Star 2.0 |
SKU  | EXR1500RTHV |
|---|---|
| Manufacturer | Minuteman |
