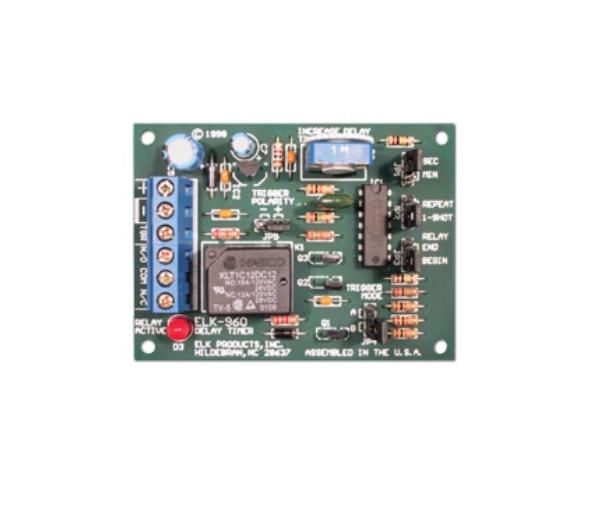

ELK 960 Delay Timer Module

The ELK-960 Delay Timer is an economical and flexible solution for various timer applications, compatible with 12 to 24 Volt D.C. systems. It features easy setup with thumbwheel adjustment for delays between 1 and 60 seconds, and a jumper setting to switch time intervals from seconds to minutes. Its configurable relay options and low current input make it a versatile choice for projects requiring precise timing control.

ELK 960 Delay Timer Features

• 12 to 24 Volt D.C. Operation: Ensures compatibility with a wide range of systems, enhancing versatility.
• Adjustable Time Delay: Easily set delays from 1 to 60 seconds, allowing for fine control over timing needs.
• SPDT (Form “C”) Relay: Provides flexibility in switching options for various applications.
• Low Current Input Trigger (<1mA): Enables use with sensitive devices, ensuring minimal impact on the circuit.
• Selectable Positive or Negative Trigger: Offers greater control for different types of projects and user preferences.
• Selectable Initial Relay State: ON / OFF: Allows customization of the relay’s starting state for tailored functionality.
• Operating Modes: One-Shot or Repeat: Adapts to project needs, whether a single-trigger functionality or continuous operation is required.
• LED Indication of Relay State: Provides immediate visual feedback on the timer’s operation, enhancing usability.

ELK 960 Delay Timer Specifications
