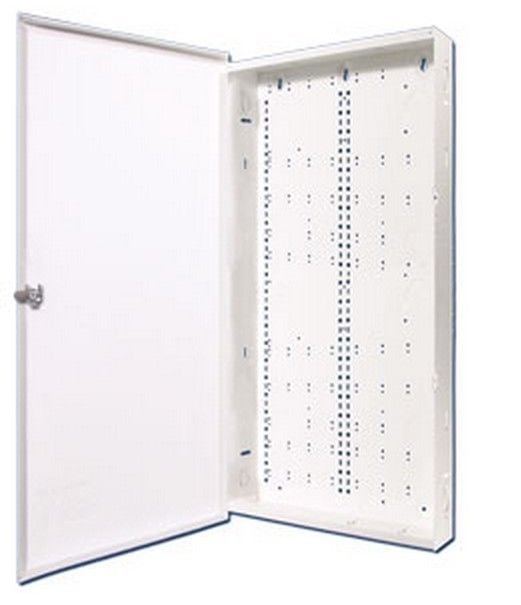

ELK SWB28 28-inch Structured Wiring Box with Door and Camlock
ELK Model SWB28
ELK SWB28 28-inch Structured Wiring Box with Door and Camlock
- Knockouts: 1/2", 3/4", and 1 1/4" conduits
- Knockout for inserting an Electrical Outlet J Box
- Heavy Duty Hinged Removable Cover with Cam Lock
- UL Listed Enclosure for Residential Burglary & Fire Systems

Overview
ELK SWB28 28-inch Structured Wiring Box Features
Multi-purpose cabinet for structured wiring, controls, & peripherals. Versatile mounting for multiple manufacturer’s structured wiring modules; such as Leviton, OnQ, OpenHouse, and others. May be flush or surface mounted. Flush mounting is ideal for hollow frame walls with studs on 16” centers. The minimum rough opening is 14.25” wide, 28.25” high, 4.5” deep. Can be adjusted for varying wall finish thicknesses and the locking, removable hinged lid extends beyond the box edges approximately 5/8” which easily conceals uneven cutouts of the wallboard edges. It’s universal design features a hole-slot-hole mounting system that allows it to accommodate shelves, brackets, wire modules and equipment from many different manufacturers.
Features
- Knockouts: 1/2", 3/4", and 1 1/4" conduits for flexible installation options.
- Electrical Outlet J Box Knockout: Simple integration of electrical outlets enhances convenience.
- Heavy Duty Hinged Removable Cover with Cam Lock: Provides security and easy access to wiring components.
- UL Listed Enclosure: Ensures compliance for residential burglary & fire systems, enhancing safety and reliability.
ELK SWB28 28-inch Detailed Specifications
| Product Name | ELK SWB28 Structured Wiring Box |
| Dimensions (W x H x D) | 14.25” x 28.25” x 4.5” |
| Knockouts | 1/2", 3/4", and 1 1/4" conduits |
| Electrical Outlet Knockout | Yes |
| Cover Type | Heavy Duty Hinged Removable with Cam Lock |
| Listing | UL Listed for Residential Burglary & Fire Systems |
| Mounting Type | Flush or Surface Mount |
| Adjustable for Wall Thickness | Yes |
| Compatibility | Compatible with multiple structured wiring modules |
Specifications
