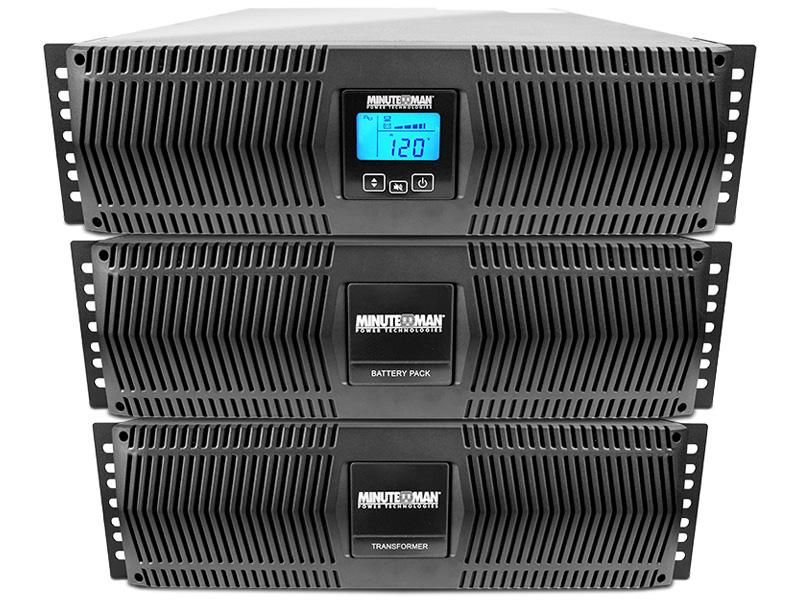

Minuteman ED10000RTXLMB 10kVA On-line Rack/Tower UPS with MTBS

The ED10000RTXLMB Endeavor 10kVA On-line Rack/Tower UPS is designed for robust power protection, featuring true double-conversion online technology, a digital signal processor design for enhanced reliability, and the ability to support larger networks with flexible voltage configurations. This UPS not only ensures the safety of critical equipment with its extended run-time and scalability options but also provides real-time monitoring through a user-friendly front panel LCD display.

Minuteman ED10000RTXLMB UPS Features

• True double-conversion online technology: Maximum protection for critical equipment
• Digital Signal Processor Design: Higher reliability through reduced number of components used in the UPS
• Higher power factors (0.8 -0.9pf): Increases the real power capacity of each individual model
• 208VAC models: Supports today’s larger loads for network equipment
• 120VAC/208VAC models with standard receptacles: Provides flexibility for support of multiple voltages used on connected loads
• Parallelable to 20kVA: Scalable capacity to grow with the customer’s loads
• Automatic Internal Bypass: The UPS will sound an alarm and go to bypass mode when an internal fault is detected
• Independent Battery Bypass: The unit can operate as a voltage regulator, even with dead or defective batteries
• Smart Fan Control: Variable speed fan control maximizes the cooling of the UPS
• Cold Start Function: Start UPS even without utility power
• Simultaneous Communication Options: Greater flexibility in the management and monitoring of the UPS system
• RoHS 2 Compliant: Reduces hazardous substances in electrical equipment

Minuteman ED10000RTXLMB Detailed Specifications
