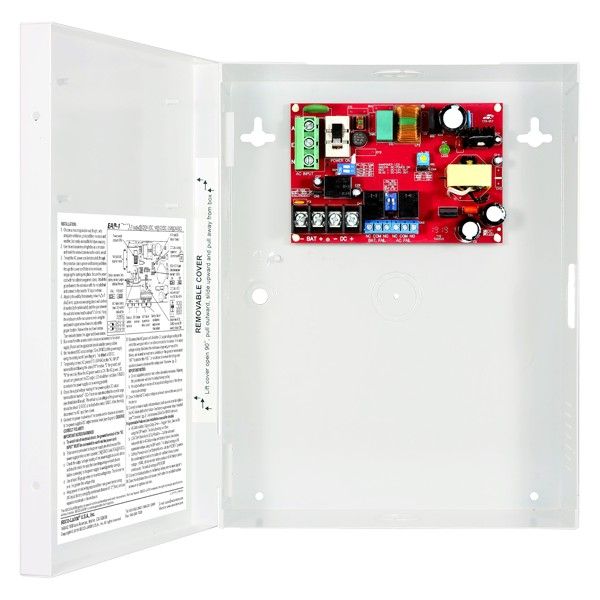

Seco-Larm EAP-1D1MQ Access Control Power Supply, Single Output, Board

The EAP-1D1MQ from Seco-Larm is an access control power supply featuring a single output board designed for reliability and efficiency. With a versatile input range and advanced safety features, this power supply ensures your access control systems operate smoothly while providing built-in protection and supervision for enhanced security.

Seco-Larm EAP-1D1MQ Access Control Power Supply Features

• Input Voltage: 110~240 VAC, fused at 3.15A - This wide input range allows for global compatibility and ensures reliability regardless of local voltage fluctuations.
• Output Stability: Filtered and electronically regulated output - Provides consistent power quality, protecting sensitive equipment from surges and fluctuations.
• Status Indicators: AC Input and DC output LED status indicators - Easily monitor the operational status at a glance, ensuring timely maintenance and action when necessary.
• Voltage Compensation: Adjustable output voltage to compensate for voltage drop - Ensures optimal performance even over long wire runs, protecting against potential equipment damage.
• AC Supervision: AC power failure supervision relay - Alerts users to AC power issues, enhancing system reliability and operational awareness.
• Safety Features: Overcurrent fuse-protected AC input - Protects the internal circuitry from damage due to overloads or short circuits, extending product life.
• Automatic Protection: Automatic shutdown for overcurrent / short-circuit protection - Prevents damage by shutting down the supply during abnormal conditions, ensuring safety and reliability.
• Output Versatility: 12/24 VDC Outputs, field selectable - Versatile output options to match various equipment requirements, enhancing installation flexibility.
• Battery Supervision: Battery failure / low battery supervision relay - Provides alerts for battery status, ensuring your system is always ready to function in emergencies.
• Backup Capability: Built-in back-up battery charger (Batteries not included) - Keeps the system operational during AC power outages, ensuring continuous access control functionality.
• Automatic Switchover: Automatically switches to backup battery if AC fails - Guarantees that your access control systems remain operational during interruptions.
• Selectable Resistor: Selectable 2.2k End-of-Line (EOL) resistor for AC failure and battery failure supervision relays - Customizable setup for enhanced monitoring capabilities.
• Timer Options: Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch - Tailor the system response time to fit your operational needs.

Detailed Specifications for Seco-Larm EAP-1D1MQ
