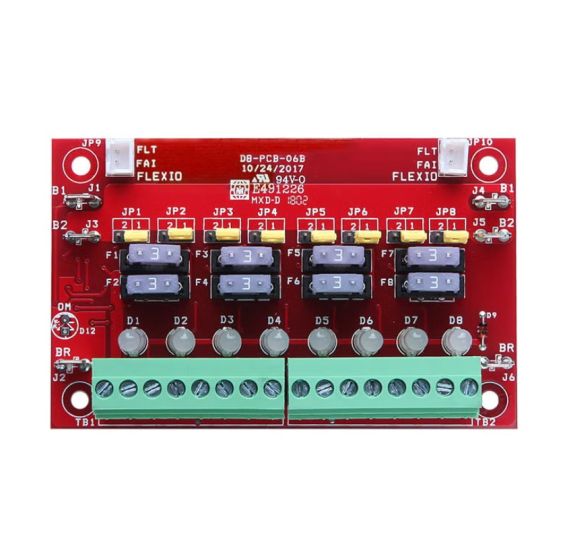

Securitron D8 Power Distribution Module Works with AQL Intelligent Power Systems

The Securitron D8/D8P Distribution Module is a versatile power distribution solution designed for use in AQL dual voltage power systems. With programmable outputs, high-efficiency circuits, and robust protection features, it serves as an ideal choice for auxiliary power distribution, direct lock control, and expanded accessory connectivity.

Features

• Dual Buss architecture: Allows field selectable Buss 1 or Buss 2 output, providing flexibility in power distribution.
• 8 outputs: Supports auxiliary power distribution and direct lock control, accommodating additional power modules as needed.
• Multi-voltage capability: When paired with the B100, it enables operation across multiple voltage levels, enhancing its versatility.
• Output Protection: Features a D8 ATM style fuse with 3 A per output and a D8P solid state circuit-breaker with 2.5 A per output, ensuring safety and reliability.
• DC Out visual indicators: Dual color LEDs per output (Green for 12 V, Blue for 24 V) provide easy status monitoring.
• Daisy chain compatibility: Multiple modules can be connected together, allowing for an expandable output setup.
• Snap-in style mounting: Features standoffs with fast-on connect cables for quick and easy installation.
• High-efficiency circuit design: Utilizes a fiberglass PCB to reduce heat generation, promoting a longer service life and lower mean time between failures (MTBF).
• MagnaCare lifetime warranty: Offers a no-fault, no-questions-asked replacement guarantee for peace of mind.

Securitron D8 Detailed Specifications
