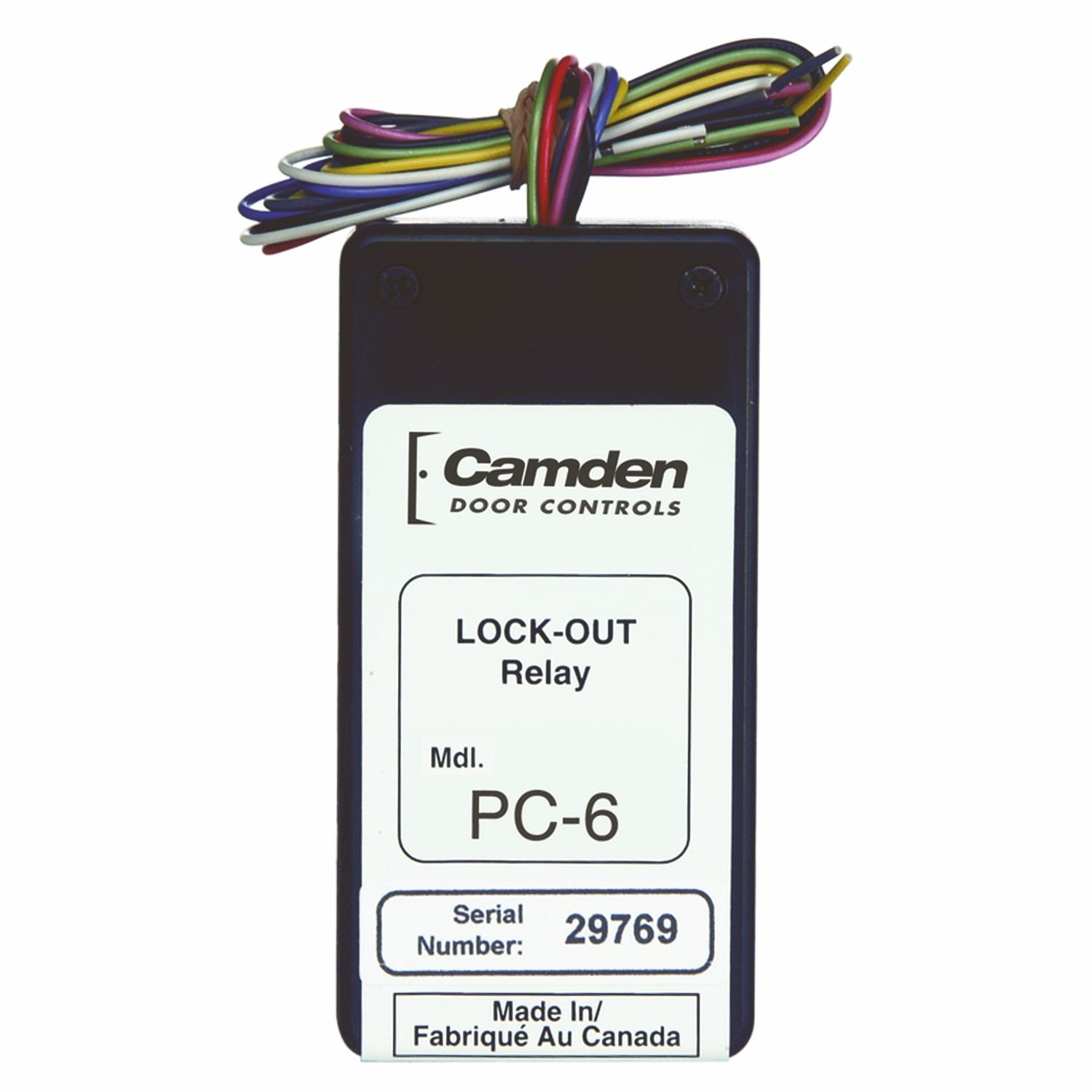

Camden Door Controls CX-PC-6 Lock Out/Secondary Activation Relay

The CX-PC-6 from Camden Door Controls is a lock out relay used on automatic swing doors to 'lock-out' the safety sensor during the closing cycle, or as a secondary activation module (SAM) for low-energy doors activated by a push button.

Features

• Suitable for any automatic door operator: Ensures compatibility with a wide range of automatic doors for versatile installation.
• Also suitable for Power-assist-close operators: Enhances functionality by supporting advanced door systems for improved performance.
• Door beam input: Provides efficient sensing capabilities to enhance safety during door operation.
• 12/24V AC/DC operation: Offers flexibility in power supply options, accommodating different installation environments.
• LED indicator: Allows for easy monitoring of system status, improving user awareness and maintenance.
• 3 - 30 second timer: Customizable timer settings enable precise control over door operation for safety and convenience.
• Motor/solenoid input, 6 to 120V AC/DC: Supports a variety of inputs for greater adaptability in diverse applications.

Camden Door Controls CX-PC-6 Detailed Specifications
