Camden Door Controls CX-1000-75 MiniMinder
SKU
CX-1000-75
Model No
CX-1000-75
$54.49
Product Highlights
- Adjustable delay from 1-15 seconds
- Circuit board design, easily installed in door operator case or electrical box/panel
- Adjustable 1 to 15 second time delay
- Wiring terminals for easy installation
Speak to an expert

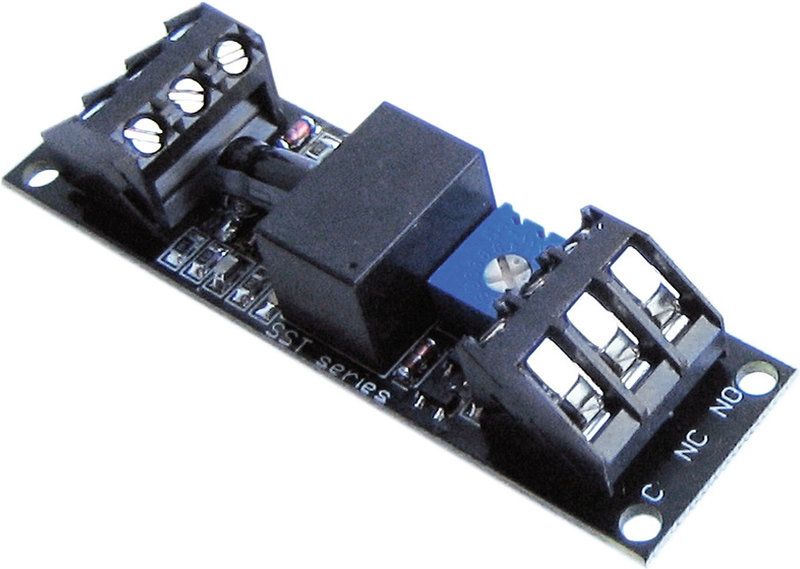

The CX-1000-75 from Camden Door Controls is a MiniMinder, an easy-to-operate delay on release timer that simplifies door control management. Featuring an adjustable delay from 1 to 15 seconds, this compact device ensures optimal timing for door operations, providing flexibility and reliability for various applications. The circuit board design allows for seamless integration into door operators, while its user-friendly potentiometer facilitates quick adjustments. With a sturdy Form C relay output rated at 2 amps @ 30V DC, this timer is perfect for push or exit switch integrations.
Camden Door Controls CX-1000-75 MiniMinder Features
- Adjustable Delay: The delay can be set from 1-15 seconds, allowing for personalized timing that meets specific operational needs.
- Circuit Board Design: Easily installed into door operator cases or electrical boxes/panels, providing flexibility for your installation requirements.
- Wiring Terminals: Simplifies installation process, enabling faster setup and reducing the risk of errors during connection.
Detailed Specifications for Camden Door Controls CX-1000-75
| Type: | MiniMinder Delay Timer |
| Delay Range: | 1 to 15 seconds |
| Relay Output: | Form C, 2 amps @ 30V DC |
| Installation: | Can be mounted in door operator case or electrical box/panel |
| Input Type: | Momentary dry contact (e.g., push switch, exit switch) |
SKU  | CX-1000-75 |
|---|---|
| Manufacturer | Camden Door Controls |
| Operating Voltage | 12VDC or 24VDC |
| Calendar | No |
| Relay Rating | 2 amp |
There are no related videos.
Write Your Own Review
Manuals & Specifications
CX-1000-75-Specsheet CX-1000-75-Installation-Instructions
