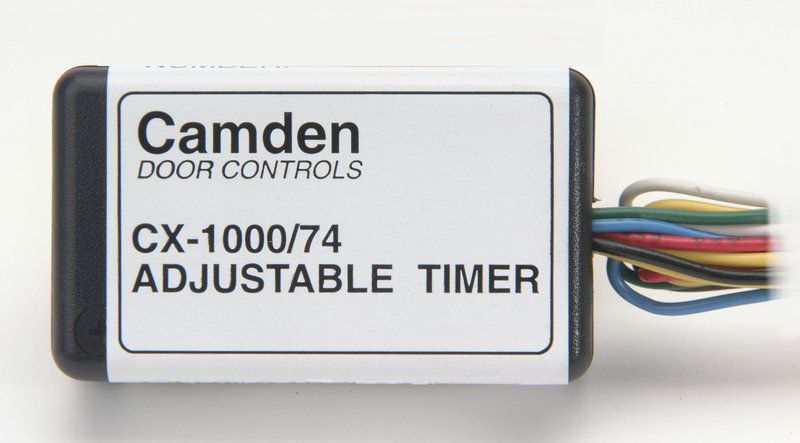

Camden Door Controls CX-1000-74 MicroMinder
SKU
CX-1000-74
Model No
CX-1000-74
$72.08
Product Highlights
- Ultra compact design
- Adjustable delay from 1-30 seconds
- Color coded leads & plastic case
Speak to an expert
The CX-1000-74 from Camden Door Controls is a MicroMinder is a flexible easy-to-operate, delay on release timer which operates on 12-24V AC/DC. The delay is adjustable from 1 to 30 seconds, and is accessed through a hole in the cover. The Form C relay output is rated at 3 amps @ 24V DC. The input may be a dry contact such as a wall switch.
The compact enclosure protects the relay should it be placed inside a metal box, operator housing, or in the ceiling or wall cavity. The circuit board may be removed from the enclosure if space is at a premium.
Camden Door Controls CX-1000-74 MicroMinder Features
- Ultra compact design: Ideal for installation in tight spaces, ensuring versatility in positioning.
- Adjustable delay from 1-30 seconds: Allows customization based on specific operational needs, enhancing user flexibility.
- Color coded leads & plastic case: Simplifies installation and maintenance, making it user-friendly for technicians.
Detailed Specifications for Camden Door Controls CX-1000-74 MicroMinder
| Feature | Details |
|---|---|
| Operating Voltage | 12-24V AC/DC |
| Delay Adjustment | 1 to 30 seconds |
| Relay Output Rating | 3 amps @ 24V DC |
| Input Type | Dry contact (e.g., wall switch) |
| Enclosure Type | Compact, protects relay |
| Circuit Board Configuration | Removable for space efficiency |
SKU  | CX-1000-74 |
|---|---|
| Manufacturer | Camden Door Controls |
| Operating Voltage | 12VAC or 24VAC, 12VDC or 24VDC |
| Calendar | No |
| Relay Rating | 3 amp |
