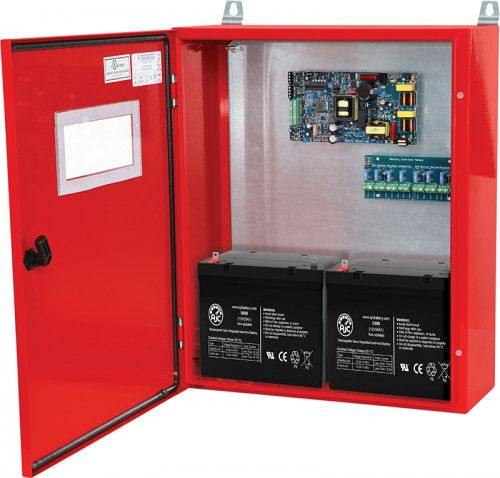

Altronix COMMBATT1 NFPA Compliant BDA Power and Battery Charger System

The Altronix CommBatt1 is an in-building power and battery backup solution for emergency response radio coverage systems. It is designed and engineered to meet NFPA 1225 codes, providing integrators and consultants with a reliable BDA power and backup option. This system ensures uninterrupted operation during emergencies, enhancing communication capabilities when it matters most.

Altronix COMMBATT1 BDA Power and Battery Charger Features

• Input: Voltage: 115VAC-220VAC 50/60Hz, 2A - accommodates various electrical systems, ensuring compatibility.
• Input Fuse: 5A/250V - protects the unit from overcurrent situations, enhancing reliability.
• Output: Voltage: 12VDC or 24VDC - offers flexibility for different equipment requirements.
• Current UL2524 Specifications: 24V @ 5.5A total or 12V @ 9A total - meets demanding operational needs, ensuring proper functionality.
• Standby and Alarm Current: 24V: 3.5A standby, 6A alarm; 12V: 3.5A standby, 12A alarm - optimizes performance for emergency conditions.
• Restore Delay Adjustment: Allows customization of restoration settings for responsive operation during power recovery.
• Auxiliary: Power-limited @ 0.6A (unswitched) - provides additional power for ancillary devices, ensuring versatility.
• Overvoltage Protection: Filtered and regulated - safeguards connected equipment from voltage spikes, enhancing durability.
• Battery Type: Sealed lead acid or gel type - compatible with commonly used battery systems, providing options for users.
• Battery Configuration: Two (2) 55AH batteries in series for 24V, One (1) or two (2) in parallel for 12V - supports various operational setups, enhancing adaptability.
• Charge Current: 3A for 12V and 2A for 24V - ensures efficient battery charging for prolonged performance.
• Battery Sold Separately: Offers flexibility in selecting battery options based on specific requirements.
• Supervision (Form “C” Contacts): AC failure, low battery, critical component failure - provides comprehensive monitoring for peace of mind.
• Indicators: Alerts for component failure, low battery, and charger trouble - facilitates timely maintenance and operational awareness.
• Physical and Environmental: NEMA-4, UL Listed aluminum red powder coated enclosure - combines durability with weather resistance, suitable for various environments.
• Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF) - ensures dependable performance across a range of temperatures.
• Storage Temperature: –20ºC to 70ºC (–4ºF to 158ºF) - protects the unit from extreme conditions during non-use.
• Relative Humidity: 85% +/- 5% - designed for humid environments without compromising functionality.
• BTU/Hr. (approx.): 74 BTU/Hr - efficiently manages energy consumption, minimizing operational costs.

Detailed Specifications for Altronix COMMBATT1
