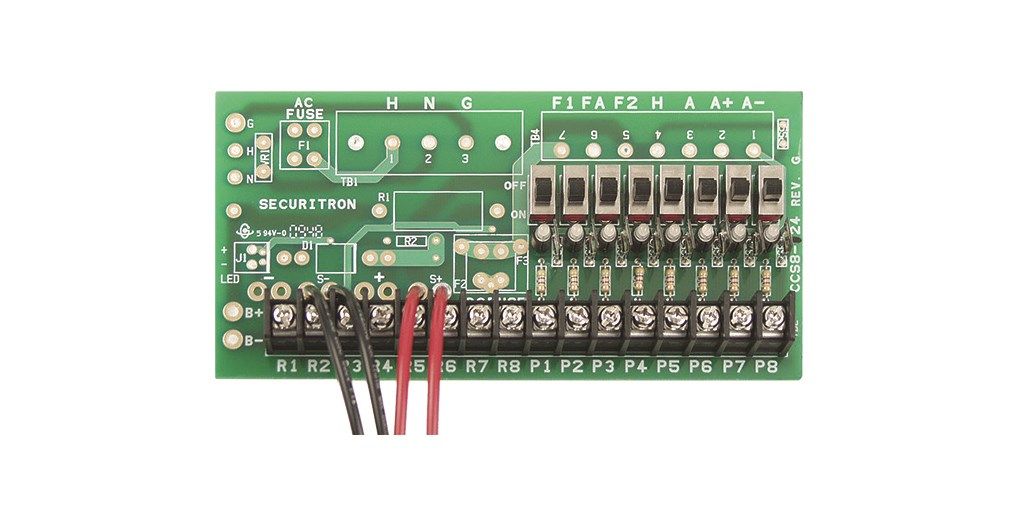

Securitron CCB-8-12 Central Control Board, 12 VDC, 8 Fused Outputs

Securitron CCB-8-12 Central Control Board Features

The CCB-8-12 allows the addition of eight individually Polyswitched outputs to an existing power supply. The power supply’s total current capacity remains the same. The CCB-8-12 may be installed into the existing power supply enclosure via the provided snap-trak. The CCB-8-12 is not compatible with the Securitron 1 amp power supply.

Features

• Expansion Board: CCB-8 expansion board used to add 8 additional Class 2 polyswitch 2A output breakers to BPS Series power supplies larger than 1 Amp - This expansion greatly enhances the existing power supply capabilities, allowing more devices to be connected safely.
• Slide Switches: Connect or disconnect load from power - This provides ease of use and flexibility when managing power distribution to connected devices.
• LED Monitoring: LEDs monitor zone status (voltage, no voltage) - Real-time status indication enhances troubleshooting and ensures reliable operation of connected devices.

Detailed Specifications for Securitron CCB-8-12
