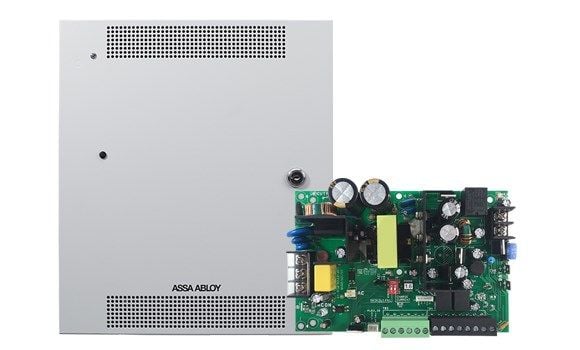

Securitron AQL4-D8PR8E1 Power Supply 4/3A DV with Enclosure, (1) D8P, (1) R8

The AQL4-D8PR8E1 from Securitron is a power supply 4/3A DV with enclosure, (1) D8P, (1) R8. The Securitron AQL4 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 4 Amp @ 12 VDC or 3 Amp at 24 VDC and are expandable up to 16 outputs.

Securitron AQL4-D8PR8E1 Power Supply Features

• Low battery cutoff: Protects batteries from deep discharge, extending battery life and ensuring reliable operation.
• Dedicated fast charger: Prolongs battery life by efficiently charging batteries, keeping them ready for use when needed.
• Enhanced surge immunity: Protects both input and output, safeguarding connected devices from voltage spikes.
• LockSafe technology: Keeps locks cooler by providing a separate, dedicated battery charging circuit, enhancing security performance.
• OutSmart technology: Features dual-color LED visual notifications to prevent applying incorrect voltages; Green indicates 12 V, Blue indicates 24 V.
• Auxiliary output: Class 2, power limited, ensuring safety and compliance with industry standards.
• Mix and match UL Listing: Provides flexibility and compliance for varied installations.
• Instant auto-switch to battery: Ensures uninterrupted power supply during AC loss, maintaining operational reliability.
• Expandable up to 16 outputs: Allows for future expansion of connected devices, enhancing the system's capability.
• Multi-voltage compatibility: Works with Securitron B100 Module for versatile application options.
• Integrated Fire Alarm Interface (FAI): Allows main output shutdown or disconnect, offering enhanced safety features with R8 output module.
• Network ready: Can be configured with an optional Netlink module for advanced monitoring and control.
• MagnaCare warranty: Enjoy lifetime replacement with a no-fault, no questions asked policy for peace of mind.

Securitron AQL4-D8PR8E1 Power Supply Specifications
