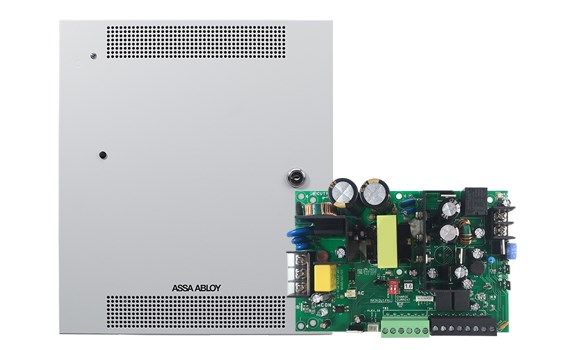

Securitron AQL4-2D8E1 Power Supply 4/3A DV with Enclosure, (2) D8

The AQL4-2D8E1 from Securitron is a power supply 4/3A DV with enclosure, (2) D8. The Securitron AQL4 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 4 Amp @ 12 VDC or 3 Amp at 24 VDC and are expandable up to 16 outputs.

Securitron AQL4-2D8E1 Key Features

• Low battery cutoff: Protects batteries from deep discharge to extend battery life.
• Dedicated fast charger: Prolongs battery life by efficiently charging batteries when needed.
• Enhanced surge immunity: Provides input/output protection to prevent damage from voltage spikes.
• LockSafe technology: Keeps locks cooler through a dedicated battery charging circuit.
• OutSmart technology: Offers dual-color LED notification (Green for 12 V, Blue for 24 V) to prevent voltage misapplication.
• Auxiliary output: Class 2, power limited for additional safety and compliance.
• Mix and match UL Listing: Allows customization while maintaining UL compliance.
• Instant auto-switch: Switches to battery power during AC loss for uninterrupted operation.
• Expandable: Supports up to 16 outputs in a standard enclosure, making it versatile for varying needs.
• Multi-voltage capability: Works with the Securitron B100 Module for added flexibility.
• Integrated Fire Alarm Interface (FAI): Allows main output shutdown on a per output basis when paired with an R8 output module.
• Network ready: Compatible with an optional Netlink module for enhanced monitoring capabilities.
• MagnaCare warranty: Offers a lifetime, no-fault warranty for peace of mind.

Securitron AQL4-2D8E1 Detailed Specifications
