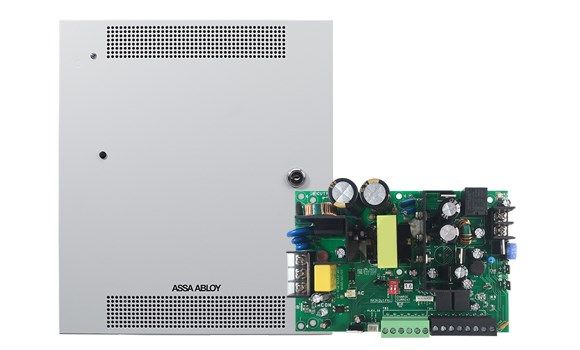

Securitron AQL4-2B1002D8E1 Power Supply 4/3A DV with Enclosure, (2) B100, (2) D8

The AQL4-2B1002D8E1 from Securitron is a power supply 4/3A DV with enclosure, (2) B100, (2) D8. The Securitron AQL4 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 4 Amp @ 12 VDC or 3 Amp at 24 VDC and are expandable up to 16 outputs.

Securitron AQL4-2B1002D8E1 Key Features

• Low battery cutoff: protects batteries from deep discharge, ensuring longer battery life and reliable operation.
• Dedicated fast charger: prolongs battery life by charging quickly and efficiently.
• Enhanced surge immunity: protects input/output from voltage spikes, enhancing overall device safety.
• LockSafe technology: keeps locks cooler by providing a dedicated battery charging circuit, reducing heat and wear on components.
• OutSmart technology: features dual-color LED visual notification that prevents applying incorrect voltages to the power supply (Green: 12 V | Blue: 24 V).
• Auxiliary output: Class 2, power limited for safe power distribution to additional devices.
• Mix and match UL Listing: allows for customized solutions tailored to specific needs.
• Instant auto-switch to battery: ensures seamless power transition during AC loss for uninterrupted service.
• Expandable capacity: supports up to 16 outputs in the standard enclosure, allowing for future scalability.
• Multi-voltage support: works with Securitron B100 Module for versatile power supply options.
• Integrated Fire Alarm Interface (FAI): allows main output shutdown or disconnect on a per-output basis for enhanced safety.
• Network ready: equipped with an optional Netlink module for remote monitoring and management.
• MagnaCare warranty: provides a lifetime, no-fault, no questions asked warranty for peace of mind.

Securitron AQL4-2B1002D8E1 Detailed Specifications
