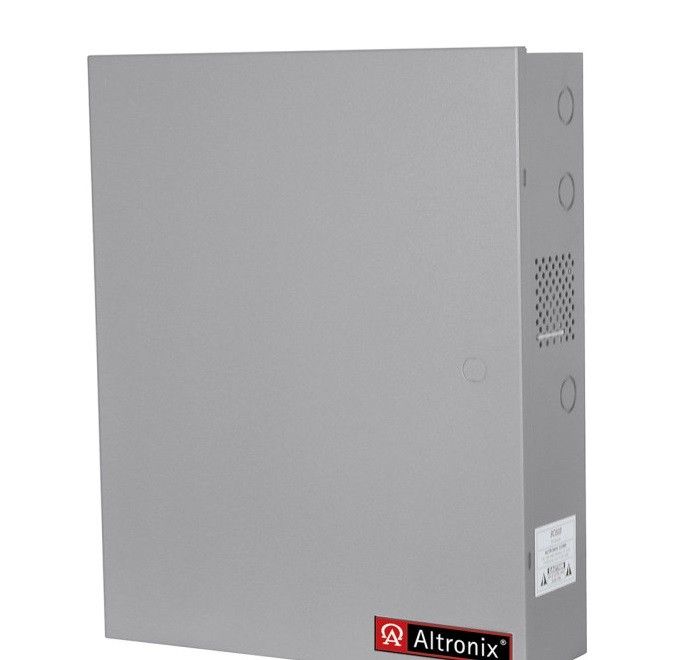

Altronix AL1024ACMCBJ220 Access Power Controller w/ Power Supply/Charger, 8 PTC Outputs
SKU
AL1024ACMCBJ220
Model No
AL1024ACMCBJ220
$479.00
Product Highlights
- 12VDC or 24VDC outputs
- Power-limited outputs
- Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs
- Eight (8) auxiliary power outputs (unswitched)
- Output PTCs are rated @ 2.5A
Speak to an expert
The Altronix AL1024ACMCBJ220 Access Power Controller with Power Supply/Charger is specifically designed for distributing and managing power for access control systems. It converts 220VAC into eight individually controlled 24VDC outputs, allowing seamless operation of various access control devices such as mag locks and electric strikes. Its compact design, versatile trigger input options, and advanced features like battery backup and fire alarm disconnect make it a reliable solution for effective access control management.
Altronix AL1024ACMCBJ220 Access Power Controller Features
- Input Voltage: 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 10A, ensuring compatibility with standard power sources.
- Power Supply Options: One common input or two isolated inputs, providing flexibility in powering various access control devices externally.
- Trigger Inputs: Eight normally open (NO) or open collector inputs allow for easy integration with multiple access control systems.
- Output Configuration: Eight independent Fail-Safe and/or Fail-Secure outputs, adaptable to differing security requirements.
- Fire Alarm Disconnect: Individually selectable for each output to enhance safety during emergencies.
- Visual Indicators: Red and green LEDs for status monitoring, helping administrators quickly identify system states.
- Battery Backup: Automatic switch over to battery in case of AC failure, ensuring uninterrupted operation.
- Temperature Range: Operates within 0ºC to 49ºC (32ºF to 120ºF), suitable for various environments.
Altronix AL1024ACMCBJ220 Detailed Specifications
| Feature | Details |
| Input Voltage | 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 10A |
| Fuse Rating | 6.3A/250V |
| Power Supply Options | One common power input for ACM8CB and lock power (factory installed) or two isolated inputs. |
| Trigger Inputs | Eight normally open (NO) or open collector inputs. |
| Output Type | 12VDC or 24VDC, power-limited outputs. |
| Fire Alarm Disconnect | Individually selectable for any or all outputs (latching or non-latching). |
| Visual Indicators | Red LEDs for triggered outputs, Green LED for FACP disconnect. |
| Battery Backup | Built-in charger for sealed lead acid or gel type batteries; zero voltage drop on switch-over. |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | -20ºC to 70ºC (-4ºF to 158ºF) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | 24VDC: 123 BTU/Hr |
SKU  | AL1024ACMCBJ220 |
|---|---|
| Manufacturer | Altronix |
| Output Protection | PTC |
| Enclosure | Yes |
