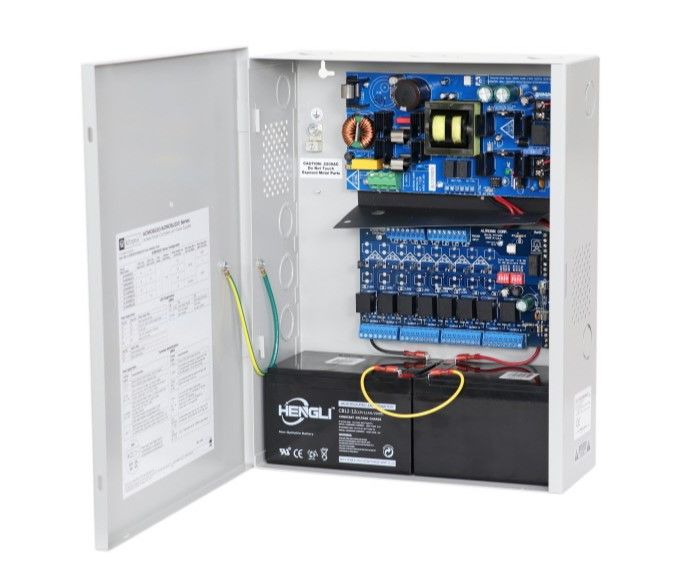

Altronix AL1024ACMCB220 Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, BC400 Enclosure

The Altronix AL1024ACMCB220 Access Power Controller seamlessly converts 220VAC input into eight independently controlled 24VDC outputs, perfect for a wide array of access control systems. With robust 10A supply current and versatile output options, it ensures robust performance and reliability for locking devices like Mag Locks and Electric Strikes. This controller features both Fail-Safe and Fail-Secure modes and incorporates advanced safety mechanisms, making it an ideal solution for any security system installation.

Altronix AL1024ACMCB220 Access Power Controller + Access Control Features

Features

• Input: Nominal 220VAC (range 198VAC - 256VAC) 50/60Hz, rated @ 2.5A ensures compatibility with standard power supplies.
• Power supply input options: Options for single common power input or two isolated inputs provide flexibility for your setup.
• Trigger Inputs: Eight (8) inputs allow for versatile connections to various access control devices.
• Output Voltage: Delivers 24VDC @ 10A for reliable powering of locking devices.
• Independently Controlled Outputs: Eight (8) outputs that can operate in either Fail-Safe or Fail-Secure modes to suit your security needs.
• Auxiliary Power Outputs: Eight (8) unswitched outputs available for additional devices.
• Short Circuit Protection: Built-in features prevent damage to the unit during electrical faults, ensuring lasting durability.
• Visual Indicators: Red and green LEDs provide clear status updates for outputs and FACP disconnect, enhancing user awareness.
• Battery Backup System: Built-in charger and automatic switchover to battery during AC failures maintain operation without interruption.
• Environmental Tolerance: Functions across a wide temperature range of 0ºC to 49ºC, making it suitable for diverse climates.

Altronix AL1024ACMCB220 Detailed Specifications
