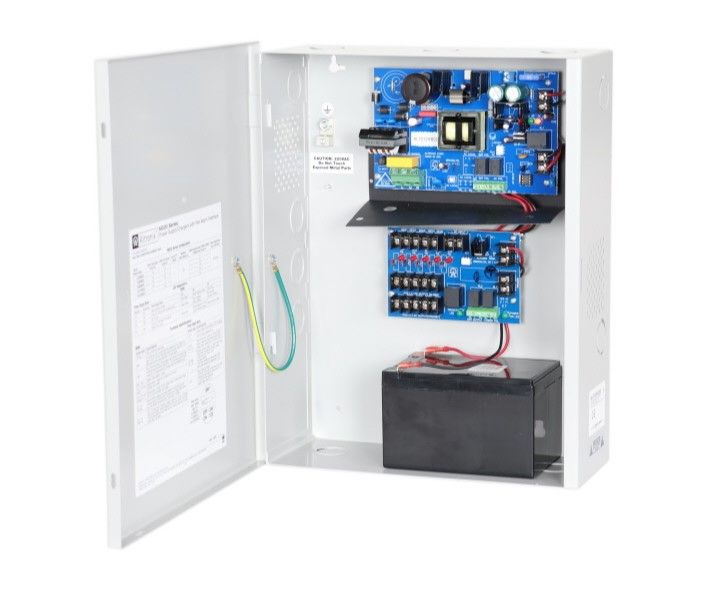

Altronix AL1012M220 Access Power Distribution Module w/ Power Supply/Charger, 5 PTC Class 2 Outputs, BC400 Enclosure

The Altronix AL1012M220 Access Power Distribution Module is a reliable and efficient power supply and charger designed specifically for access control systems. It converts 220VAC input into five individual 12VDC outputs, powering various devices such as Mag Locks and Electric Strikes. With robust protections, battery backup, and easy supervision features, this module ensures continuous operation and security for access control solutions.

Features

Altronix AL1012M220 Input Features

• Input: 220VAC 50/60Hz, 2.2A for versatile power needs.
• Input Fuse: Rated @ 5A/250V ensuring safe operation.
• Trigger Inputs: Compatible with Fire Alarm Panels, supports N.O. and N.C. inputs for flexible integration.

Altronix AL1012M220 Output Features

• 12VDC Outputs: Provides reliable and consistent voltage for access control devices.
• Supply Current: 10A capacity ensures enough power for all connected devices.
• PTC Protected Outputs: Five auto-resettable 2A outputs protect against overloads.
• Relay Activation: Form "C" contact rated 1A @ 28VDC for efficient triggering.
• Output Regulation: Filtered and electronically regulated output for stable performance.
• Safety Features: Short circuit and thermal overload protection enhance reliability.
• Current Limiting: 2A limit per output prevents damage and enhances longevity.

Altronix AL1012M220 Battery Backup Features

• Charger: Built-in for sealed lead acid or gel type batteries ensuring continuous operation.
• Automatic Switch Over: Seamless transition to standby battery during AC failure with zero voltage drop for uninterrupted service.

Altronix AL1012M220 Supervision Features

• AC Fail Supervision: Form "C" contact provides alerts on AC interruptions.
• Low Battery Supervision: Alerts for battery maintenance through form "C" contact.
• Battery Presence Supervision: Ensures battery is properly connected and operational.
• Power Fail Supervision: Relay rated 1A @ 28VDC helps manage power stability efficiently.

Altronix AL1012M220 Visual Indicators Features

• LED Indicators: Clear status using DC output, power, and input trigger LEDs for easy monitoring.
• Condition Display: LEDs indicate the status of all power outputs for immediate troubleshooting.

Altronix AL1012M220 Temperature Features

• Operating Temperature: 0° C to 49° C (32° F to 120° F) suitable for various environments.
• Storage Temperature: -20° C to 70° C (-4° F to 158° F) ensures durability.
• Humidity: 85% +/- 5% relative humidity tolerance for reliability.
• Heat Output: 61 BTU/hr (approx.) for managing heat dissipation.
• AC Input Requirement: 352VA ensuring compatibility with standard power supplies.
