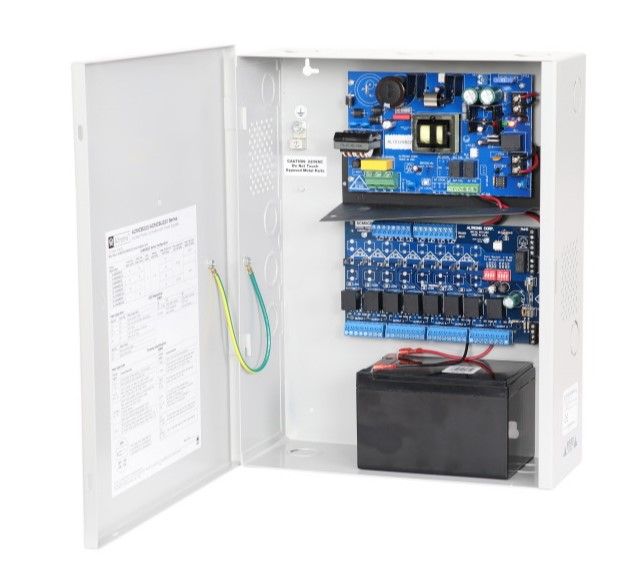

Altronix AL1012ACMCB220 Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, BC400 Enclosure

The Altronix AL1012ACMCB220 Access Power Controller is a highly functional device designed for seamless integration with various access control systems. It efficiently converts 220VAC power into eight independently controlled 12VDC outputs, offering flexibility between Fail-Safe and Fail-Secure modes. With robust features like fire alarm disconnect options, battery backup, and visual indicators, this controller is ideal for managing locking devices in various applications, ensuring both reliability and security.

Altronix AL1012ACMCB220 Input Features

• Input: Nominal 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 1.0A
• Power Supply Input Options: a) One (1) common power input for ACM8CB and lock power (factory installed) b) Two (2) isolated power inputs - One (1) to power the ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10A total)
• Trigger Inputs: Eight (8) Access Control System trigger inputs
• Input Options: a) Eight (8) normally open (NO) inputs b) Eight (8) open collector inputs

Altronix AL1012ACMCB220 Output Features

• Output: 12VDC @ 10A supply current
• Controlled Outputs: Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs (auto-resettable)
• Auxiliary Outputs: Eight (8) auxiliary power outputs (unswitched)
• PTC Rating: Rated @ 2.0A
• Regulated Outputs: Filtered and electronically regulated outputs (built-in power supply)
• Main Fuse: ACM8CB board main fuse is rated at 10A

Altronix AL1012ACMCB220 Special Features

• Fire Alarm Disconnect: Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
• Disconnect Input Options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit
• Alarm Output Relay: Indicates that FACP input is triggered
• Protection: Short circuit and thermal overload protection

Altronix AL1012ACMCB220 Visual Indicators

• LED Indicators: Red LEDs indicate outputs are triggered (relays energized)
• FACP Disconnect Indicator: Green LED indicates FACP disconnect is triggered
• Power Indicators: AC input and DC output LED indicators

Altronix AL1012ACMCB220 Battery Backup Features

• Built-in Charger: For sealed lead acid or gel type batteries
• Automatic Switch Over: Automatic switch over to stand-by battery when AC fails
• Zero Voltage Drop: Zero voltage drop when unit switches over to battery backup (AC failure condition)
• Supervision: Battery fail and battery presence supervision (form "C" contact)

Altronix AL1012ACMCB220 Temperature Specifications

• Operating Temperature: 0° C to 49° C (32° to 120°F)
• Storage Temperature: -20ºC to 70ºC ( - 4ºF to 158ºF)
• Relative Humidity: 85% +/- 5%
• BTU/Hr.: (approx.): 61 BTU/Hr
