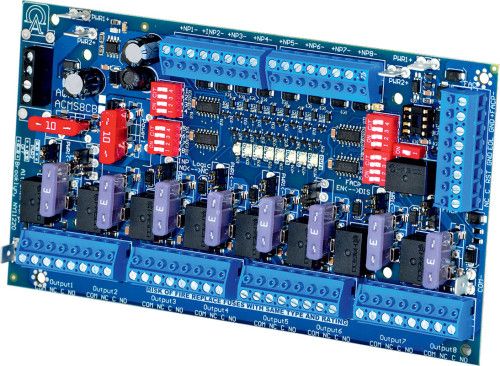

Altronix ACMS8 8 Fuse Protected Outputs, Access Power Controller, Board

Altronix ACMS8 Access Power Controller Features

Altronix ACMS8 and ACMS8CB dual input design allows power to be steered from two (2) independent low voltage 5 to 24 VDC power sources into eight (8) independently controlled fuse protected outputs. In ACMS8, these power outputs can also be converted to dry form “C” contacts. Outputs are activated by an open collector sink, normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. ACMS8/ACMS8CB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple ACMS8/ACMS8CB modules. This feature allows you to distribute the power over more outputs for larger systems.

Features

• Input Voltage Range: 5VDC to 24VDC, supports two independent inputs of up to 10A each or a combined total of 20A, maximizing power distribution for various applications.
• Fuse Protected Outputs: Each output is rated at 2.5A, non power-limited, ensuring reliable and safe operation with a maximum total output of 20A.
• Service Mode: Individual outputs can be set to OFF for servicing by adjusting the jumper, facilitating maintenance without disrupting power.
• Power Input Selection: Any of the eight outputs can follow Input 1 or Input 2, offering flexible configuration according to system requirements.
• Surge Suppression: Built-in surge suppression protects devices from voltage spikes, enhancing the longevity and reliability of connected equipment.
• Fire Alarm Disconnect: Selectable for each output, this feature ensures compliance with safety protocols, providing either latching or non-latching options.
• LED Indicators: Red LEDs show when outputs are triggered, while a blue LED indicates FACP disconnect, providing clear visual status for easy monitoring.
