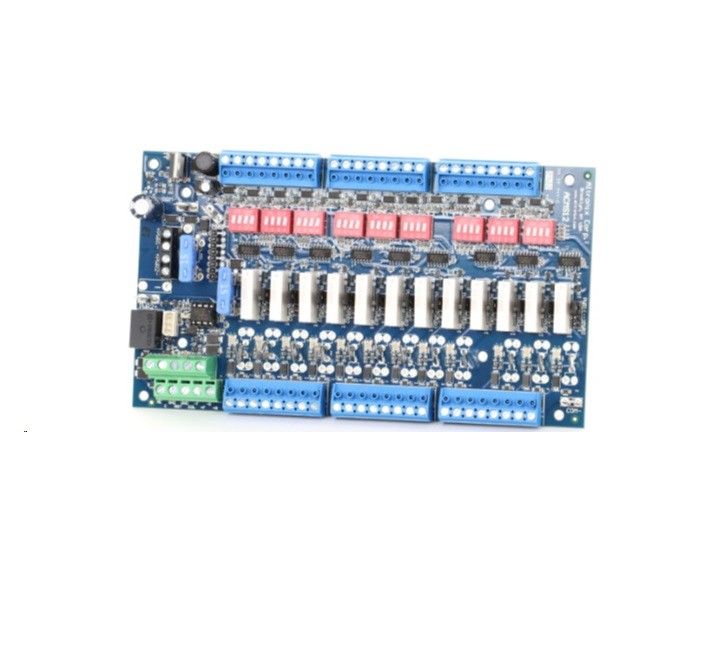

Altronix ACMS12CB Dual Input Access Power Controller, 12 PTC Protected Outputs, Board

Introducing the Altronix ACMS12CB Dual Input Access Power Controller, a cutting-edge solution designed to enhance your access control systems. With its dual input capability and twelve PTC protected outputs, this device ensures reliable power management for various access control hardware, including Mag Locks and Electric Strikes. Its intelligent features, like emergency egress support and adjustable fire alarm disconnect, make it a versatile addition to any security system.

Altronix ACMS12CB - Key Features

• Dual Input Design: Utilizes two independent low voltage 5 to 24 VDC power sources, ensuring power redundancy and flexibility in various setups.
• Twelve Outputs: Independently controlled PTC protected outputs allow for customized power routing to different access hardware.
• Fail-Safe or Fail-Secure Modes: Outputs can be configured based on security requirements, providing versatility for different applications.
• Selectively Controlled Outputs: Each output can follow either Input 1 or Input 2, allowing for systematic power management.
• Fire Alarm Disconnect: Individually selectable for any of the twelve outputs, enhancing safety in emergencies.
• LED Indicators: Easily monitor system status with blue LED for FACP disconnect and individual voltage indicators (green for 12VDC, red for 24VDC).
• Temperature and Humidity Tolerance: Operates in a wide temperature range (0ºC to 49ºC) and supports high humidity levels (93% +/-5%), making it suitable for various environments.

Altronix ACMS12CB - Detailed Specifications
