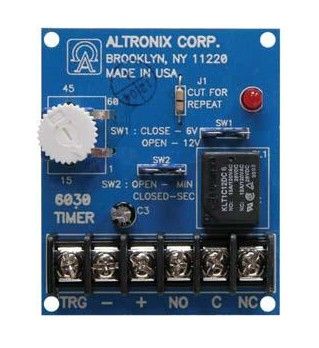

Altronix 6030 Timer, Multi-Purpose, 6/12VDC 1 Second to 60 Minutes, Board
SKU
6030
Model No
6030
$16.78
Product Highlights
- 6 or 12VDC operation is selectable
- Quick and extremely accurate time range adjustment from 1 second to 60 minutes
- LED indicates relay is energized
- Form "C" relay contacts are 5 amps at 120VAC/28VDC
- Current draw stand by 3mArelay energizes at 75mA
Speak to an expert
Overview The 6030 programmable timer is suitable for most functions that require a timed operation, providing exceptional versatility and reliability for various applications.
Altronix 6030 Timer Features
- 6 or 12VDC operation: Select between two voltage options to best match your system requirements.
- Accurate time range adjustment: Easily set the timing from 1 second to 60 minutes, allowing for precise control over operational durations.
- LED indicator: A built-in LED provides visual confirmation that the relay is energized, enhancing user awareness of the timer status.
- Form "C" relay contacts: Rated for 5 amps at 120VAC/28VDC, ensures reliable activation of connected devices.
- Low current draw: Standby consumption of only 3mA, with relay energizing at 75mA, promotes energy efficiency.
Altronix 6030 Timer Detailed Specifications
| Voltage Options | 6 or 12VDC |
| Timing Range | 1 second to 60 minutes |
| LED Indicator | Yes |
| Relay Contacts | Form "C", 5 amps @ 120VAC/28VDC |
| Standby Current Draw | 3mA |
| Relay Energizing Current | 75mA |
SKU  | 6030 |
|---|---|
| Manufacturer | Altronix |
| Operating Voltage | 6VDC or 12VDC |
| Calendar | No |
| Function | Multi-Purpose Timer Module |
| Number of Channels | 1 |
| Relay Rating | 5 amp |
There are no related videos.
5
Write a review
Share your thoughts with other customers
Top customer reviews
- Altronix 6030 0 people found this helpful"Great little unit for the money! I bought 2 of them to make a drag racing light for soapbox derby race. Easy to use/install. Fast friendly service from Surveilllance Video."
- Altronix 6030 Timer 0 people found this helpful"Customer Service is outstanding. The product is great, we are using 3 of these timers for a Community soapbox derby race event. I built a drag light and used these timers for lights and to drop the gate so cars go down the hill. Nice inexpensive well built item and easy to install. Highly recommend this product!"
Write Your Own Review
Manuals & Specifications
6030-Specsheet
