Intellinet 508957 Industrial Gigabit PoE++ Extender

The Intellinet 508957 Industrial Gigabit PoE++ Extender enhances your PoE connectivity by doubling the distance to your devices in harsh environments, supporting up to 200 m (656 ft.) of connection while providing robust power delivery and data transfer. With its rugged design and adherence to industry standards, it's the ideal solution for IoT applications and other deployments where reliability is paramount.

Intellinet 508957 PoE++ Extender Features

• Connection Distance: Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.) for extended coverage.
• Power Output: Delivers up to 80 W to a connected PoE device, ensuring sufficient power for high-demand peripherals.
• Dirt-Resistant Housing: IP30-rated metal housing designed to withstand harsh industrial conditions for reliable operation.
• Extreme Temperature Range: Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF), ensuring functionality in diverse environments.

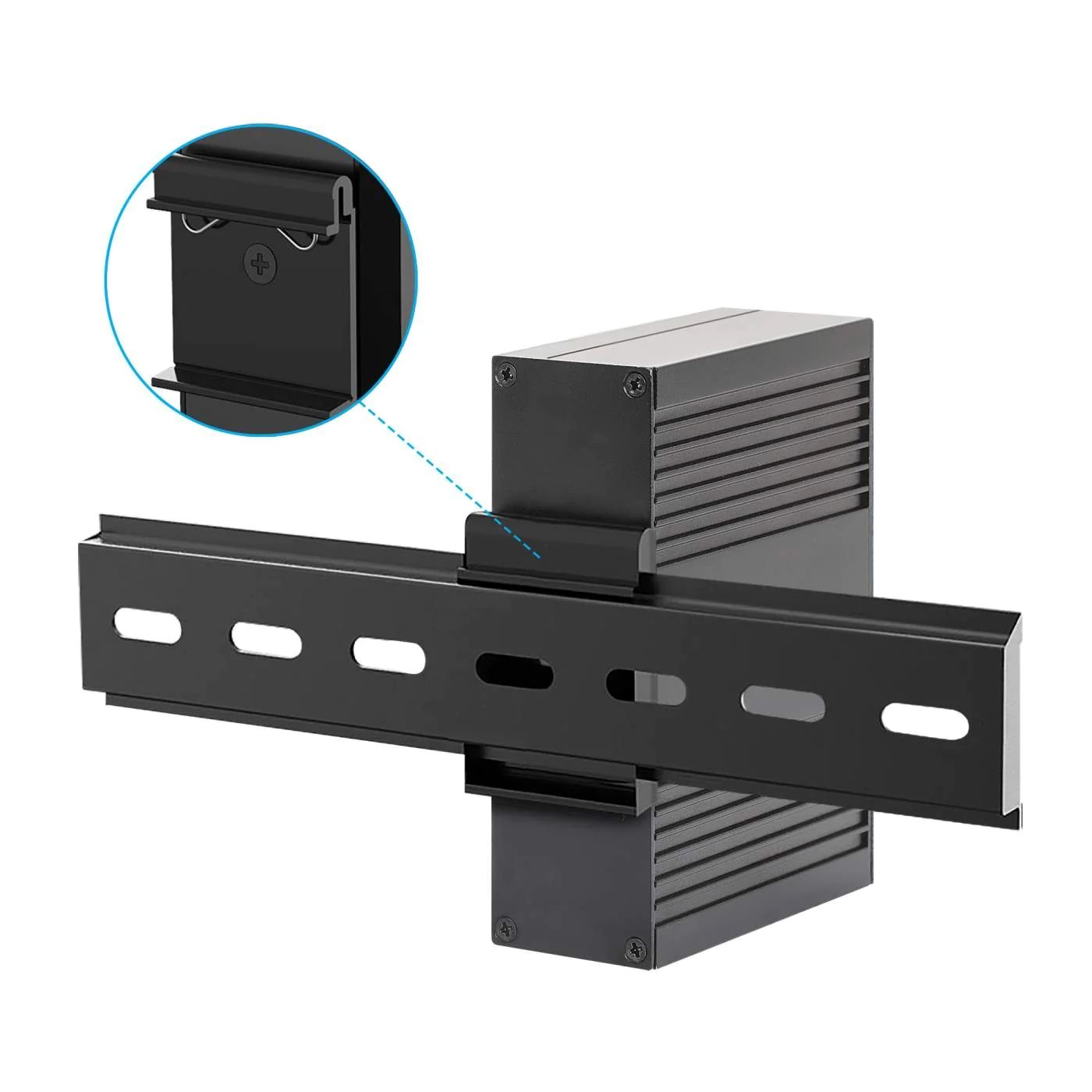

• DIN-Rail Installation: Option for DIN-rail installation makes it versatile for various industrial setups.
• Compatibility: Compatible with IEEE 802.3bt/at/af-compliant powered devices like network cameras and VoIP phones.
• Data Rate Support: Supports 10/100/1000 Mbps data rates for fast network connection.
• Auto-Sensing PoE: Ensures power is only sent to compatible devices while non-PoE devices receive data only.
• Protective Features: Short-circuit, overload, and high-voltage protection safeguards your equipment.
• Surge Protection: Grounding point protects equipment from external electrical surges for added safety.
• No Additional Power Needed: Requires no additional power supply, drawing power directly from the PoE input.
• Injector Compatibility: Works with IEEE 802.3bt/at/af-compliant PoE injectors and switches.
• MAC Address Feature: Supports 2k MAC address entries with Auto-Learning and Auto-Aging for efficient network management.
• LED Indicators: Included LED indicators for power input and PoE output for easy monitoring.
• NDAA Compliance: Fully compliant with NDAA standards for security assurance.

Intellinet 508957 Detailed Specifications
