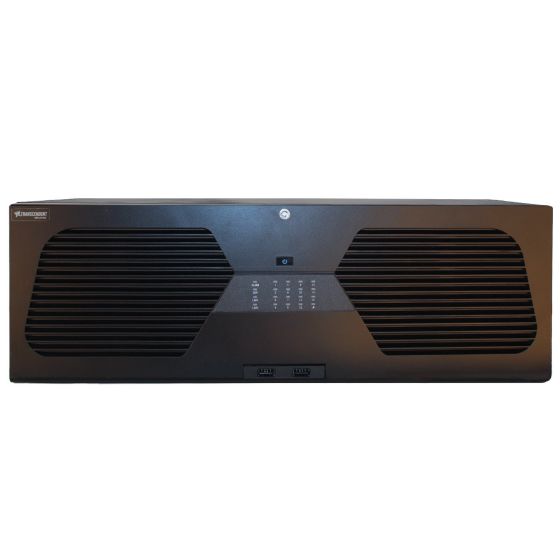

Vitek VT-TNV128E1-192T 128 Channel Network Video Recorder, 192TB
SKU
VT-TNV128E1-192T
Model No
VT-TNV128E1-192T
$13,022.22
Product Highlights
- 128 Channel Stand-alone Real-time IP Network Video Recorder
- Fully Programmable Gen. III Intelligent Analytics: Face Detection, Target Counting, Intrusion, Region Entrance / Exit, Line Crossing, Scene Change, Video Blur
- Advanced Processor Enables Facial Detection/Recognition Even While Using Standard (Non-Analytic) IP Cameras (Maximum 4)
- Facial Detection up to 128 Cameras using Face Detection Enabled IP Cameras
- Facial Recognition (Capture and Identification) for up to 16 Cameras Using Face Recognition Enabled IP Cameras
Speak to an expert
The VT-TNV128E1-192T from Vitek is a state-of-the-art 128 channel network video recorder with a massive 192TB storage capacity. Designed for professional surveillance needs, this recorder supports High Definition IP security cameras up to 8 Megapixel and features a user-friendly interface for easy operation. Its advanced analytics capabilities, powerful processing, and extensive connectivity options make it an ideal choice for monitoring and ensuring security for any environment.
Vitek VT-TNV128E1-192T Camera Features
- Channel Capacity: 128 channels for concurrent video recording and playback, allowing comprehensive surveillance coverage.
- High Definition Support: Supports resolutions up to 8 Megapixel for crystal clear image quality, enhancing identification and monitoring efforts.
- Intelligent Analytics: Fully programmable analytics including face detection, target counting, and intrusion alerts, improving security responsiveness.
- Facial Detection: Capable of facial detection across 128 cameras, ensuring efficient and effective monitoring.
- Robust Compression: H.265+/H.265/H.264 options reduce bandwidth and storage needs while maintaining high-quality video.
- Plug and Play Setup: Auto configuration for ONVIF compliant cameras streamlines installation, saving time and effort.
- Extensive Storage: 16 HDD slots support up to 160TB internal storage, accommodating extensive video recordings without interruptions.
- Remote Access: Features dual LAN ports for reliable remote viewing via mobile apps and web browsers.
- RAID Support: RAID 0, 1, 5, 6, and 10 configurations protect data integrity while maximizing storage capabilities.
- Multi-Platform Compatibility: Compatible with iOS, Android, and Mac OS® for versatile access and control.
Vitek VT-TNV128E1-192T Detailed Specifications
| Channel Capacity | 128 Channels |
| Resolution Support | Up to 8 Megapixel |
| Video Compression | H.265+, H.265, H.264 |
| Storage Capacity | 192TB |
| HDD Slots | 16 SATA2/SATA3 HDD Slots |
| Network Ports | Dual Gigabit LAN Ports |
| Remote Access | Web Browser, iOS & Android Apps |
| RAID Support | RAID 0, 1, 5, 6, 10 |
| Power Supply | 100-240V AC, 50/60Hz |
| Dimensions | Standard Rackmount (2U) |
SKU  | VT-TNV128E1-192T |
|---|---|
| Manufacturer | Vitek |
| IP Channels | 128 Channels |
| Harddrive Size | 192TB |
| Protocols | VITEK Protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Supports PTZ Control, Two-way Audio, Facial Recognition |
Resolution  | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Compression | H.265+ / H.265S / H.265 / H.264 |
| Bandwidth | Display Priority 128Mbps / Network Priority 640Mbps |
| Operating temperature | 32°~122°F @ 10% ~ 90% RH |
| Dimensions | 17.20” × 19.02” × 5.63” (437mm×483mm×143mm) |
| Network | RJ45 10 / 100 / 1000 Mbps × 2 |
| SATA | SATA x 16, max 10TB each (Total 160TB) |
| USB | USB 2.0 × 2 (for mouse and USB backup device) USB 3.0 × 1 |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
