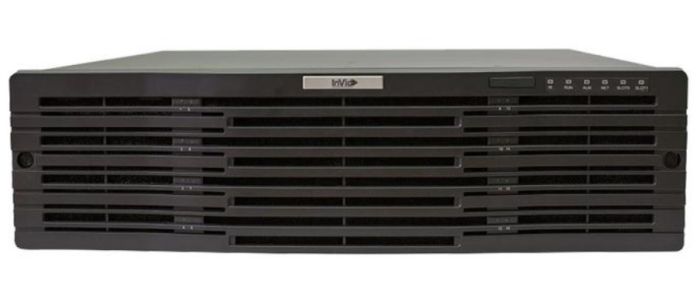

InVid VN2A-128-6TB 128 Channels 4K Network Video Recorder, 512 Mbps, 16 HD Bays, 6TB
SKU
VN2A-128-6TB
Model No
VN2A-128-6TB
$4,145.80
Product Highlights
- 128 Channel IP Camera Input
- Up to 12 Megapixel Resolution Recording
- 512 Mbps Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Works with ONVIF or other supported IP cameras
Speak to an expert
The VN2A-128-6TB from InVid is a powerful 128 Channel Network Video Recorder, offering a robust 512 Mbps bit rate and 16 HD bays for unparalleled storage capacity. With 4K support and cloud upgrade options, this NVR ensures high-quality surveillance capabilities for expansive areas.
InVid VN2A-128-6TB Camera Features
- 128 Channel IP Camera Input - Supports extensive camera integration for comprehensive monitoring across large areas.
- Up to 12 Megapixel Resolution Recording - Captures high-quality video, ensuring every detail is clear for effective surveillance.
- 512 Mbps Bit Rate Input - Maintains a high data transfer rate for smooth streaming and recording, even with multiple cameras.
- 16 Channel Simultaneous Playback - Easily review multiple camera feeds at once, saving time during investigations.
- Compatibility with ONVIF and Other Supported IP Cameras - Flexible compatibility with a wide range of cameras allows for versatile installation options.
- Local HDMI Main Monitor Output with 4K Support - Connects directly to 4K displays for crystal-clear live views and footage playback.
- Local VGA Main Monitor Output Up to 1080p - Provides an additional connection option for monitoring without sacrificing quality.
- EZ Vision Stream Connect for Networking - Simplifies the network setup process for hassle-free connectivity.
- Multiple Video Search Options Including Smart Search - Quickly retrieve footage based on motion detection or specific events for efficient management.
- H.265/H.264 Video Compression - Reduces storage requirements while maintaining high video quality, maximizing your storage capacity.
- Free iOS & Android Apps for Smart Phones & Tablets - Monitor and manage your system remotely from anywhere, enhancing accessibility.
- Free Central Management Software (CMS) - Manage multiple units and sites from one platform, streamlining your surveillance operations.
- Free MAC Client Software - Easily control and manage your system from your Apple computer, ensuring user convenience.
InVid VN2A-128-6TB Detailed Specifications
| Model | VN2A-128-6TB |
| Channel Support | 128 Channels |
| Recording Resolution | Up to 12 Megapixels |
| Bit Rate | 512 Mbps |
| Playback Channels | 16 Channels Simultaneous Playback |
| HD Bays | 16 HD Bays |
| Local Output | HDMI (4K), VGA (up to 1080p) |
| Compression Formats | H.265/H.264 |
| Mobile Apps | Free iOS & Android Apps |
| Management Software | Free CMS & MAC Client Software |
| Networking | EZ Vision Stream Connect |
SKU  | VN2A-128-6TB |
|---|---|
| Manufacturer | InVid |
| IP Channels | 128 Channels |
| Harddrive Size | 6TB |
| Protocols | InVid Protocols, ONVIF Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Compression | H.265, H.264 |
| Bandwidth | Incoming Bandwidth: 512 Mbps, Outgoing Bandwidth: 384 Mbps |
| Operating temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Dimensions | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
| Voltage | 100 ~ 240 VAC |
| Network | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface, 2 1000M SFP Ethernet Interface |
| SATA | 16 SATA interfaces |
| USB | Rear panel: 4 x USB3.0 |
| Audio | 1-ch, BNC |
| Compression Supported | Yes |
| HDMI Output (720p/1080p) | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
