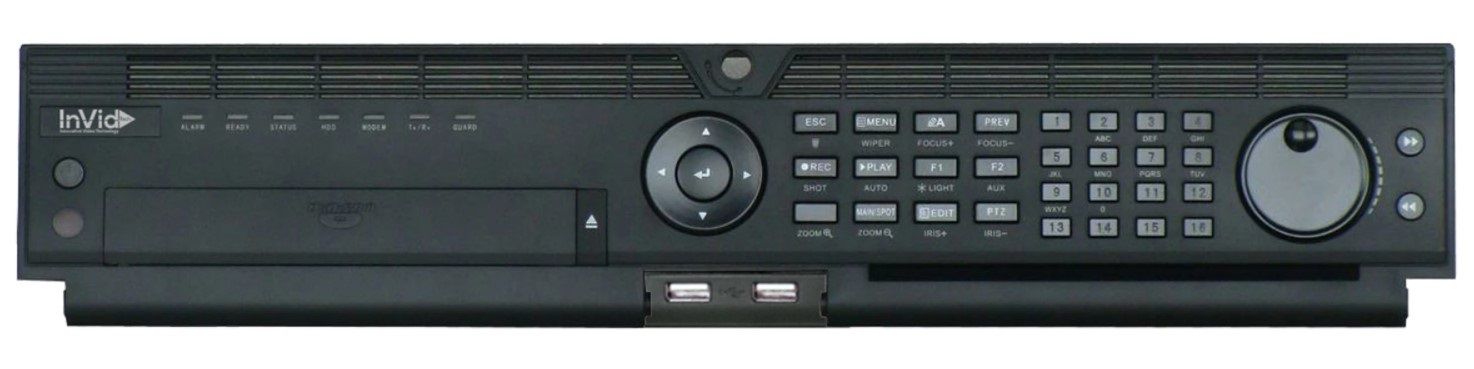

InVid UN2A-64A-24TB 64 Channel NVR, 24TB
SKU
UN2A-64A-24TB
Model No
UN2A-64A-24TB
$2,835.00
Product Highlights
- 64 Channel IP Camera Input
- Up to 12 Megapixel Resolution Recording
- 320 Mbps Bit Rate Input, 200Mbps if RAID is enabled
- Dual Gigabit Network Interfaces
- Supports up to 16 channel simultaneous playback
Speak to an expert
The UN2A-64A-24TB from InVid is a cutting-edge 64 channel network video recorder designed for high-performance surveillance. With a robust 320 Mbps throughput, eight HD bays, and 24TB of storage, it offers expansive capacity and exceptional video quality, making it ideal for comprehensive security solutions.
InVid UN2A-64A-24TB Camera Features
- 64 Channel IP Camera Input: Supports extensive camera systems for expansive coverage.
- Up to 12 Megapixel Resolution Recording: Captures high-quality video ensuring crystal clear images.
- 320 Mbps Bit Rate Input: High throughput enables multiple cameras without sacrificing performance.
- Dual Gigabit Network Interfaces: Provides reliable connectivity and enhanced bandwidth management.
- Supports Simultaneous Playback: Watch up to 16 channels at once for easier monitoring.
- ONVIF Compatibility: Works seamlessly with a variety of supported IP cameras for added versatility.
- Local HDMI Output with 4K Support: Connect to HD monitors for superior playback quality.
- VGA Output Up to 1080p: Compatible with a variety of display options for easy monitoring.
- Smart Video Search Options: Quickly retrieve specific footage, saving time during investigations.
- Multiple Video Compression Formats: Flexible options including H.265 for optimized streaming and storage (H.265 supported with Ultra Cameras only).
- Unique Virtual Host: Offers remote access to all IPC menu features for convenient management.
- Large Storage Capacity: Eight hard drive bays offer extensive storage scalability.
- Free Mobile Apps: Available for iOS & Android for easy mobile management.
- Free Central Management Software: Streamlines management for multiple units and locations.
- MAC Client Software: Enables easy management from Apple computers.
InVid UN2A-64A-24TB Detailed Specifications
| Feature | Details |
|---|---|
| Model | UN2A-64A-24TB |
| Channels | 64 |
| Max Resolution | 12 Megapixels |
| Bit Rate Input | 320 Mbps (200 Mbps with RAID enabled) |
| Storage | 24TB (with 8 HD bays) |
| Network Interfaces | Dual Gigabit |
| Playback Channels | 16 simultaneous |
| Video Outputs | HDMI (4K), VGA (up to 1080p) |
| Video Compression | H.265/H.264/H.264+/MJPEG |
| Remote Access | Virtual Host support |
| Mobile App | Free for iOS & Android |
| Central Management Software | Free for multiple units |
| MAC Client Software | Free |
SKU  | UN2A-64A-24TB |
|---|---|
| Manufacturer | InVid |
| IP Channels | 64 Channels |
| Harddrive Size | 24TB |
| Protocols | InVid Protocols, ONVIF Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, MJPEG Compression, MPEG-4 Compression, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | Up to 12 Megapixel |
| Compression | H.265/H.264/H.264+/MJPEG/MPEG-4 |
| Dimensions | 17.52” × 18.5” × 3.54” |
| Voltage | 100~240VAC |
| Network | 2, RJ45 10M/100M/1000M adaptive Ethernet Interface |
| SATA | 8 SATA interfaces (up to 12TB Ea.) |
| USB | 2 x USB2.0, 1 x USB3.0 |
| Audio | 1/1 |
| Compression Supported | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
| MPEG-4 Compression | Yes |
