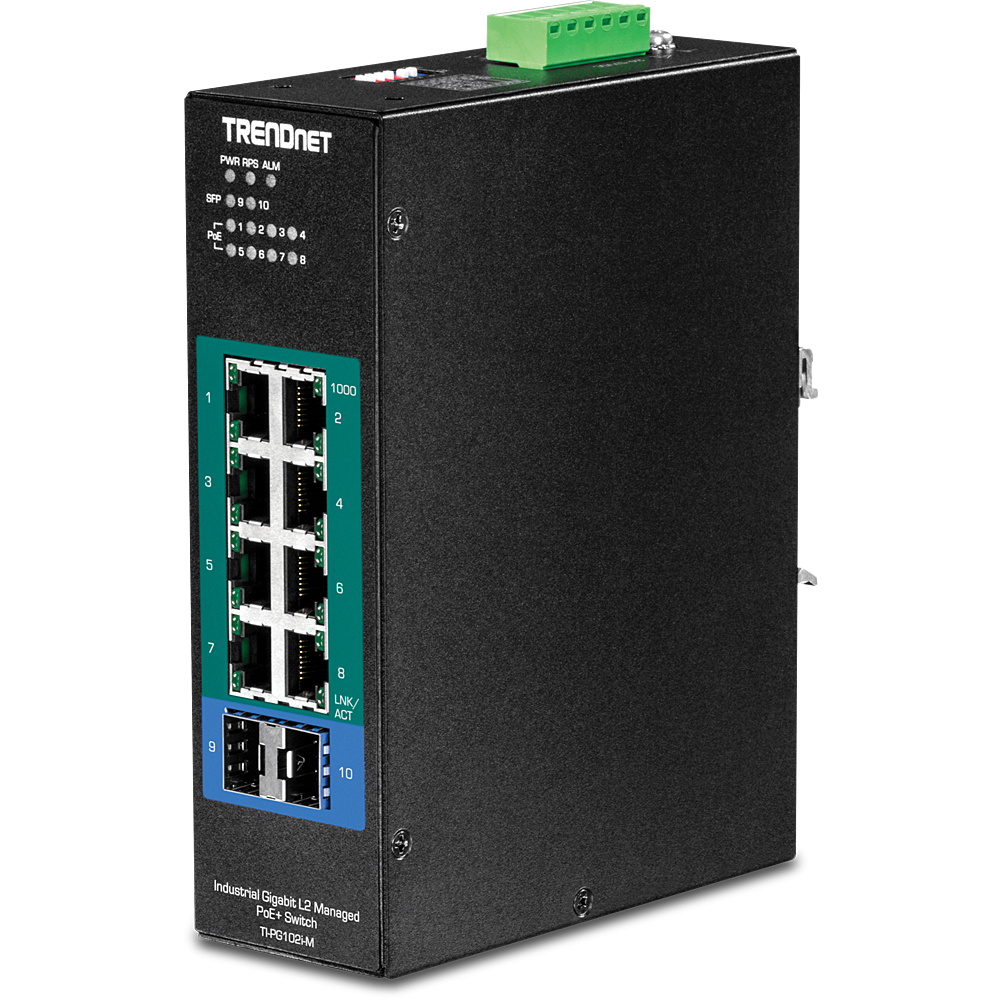

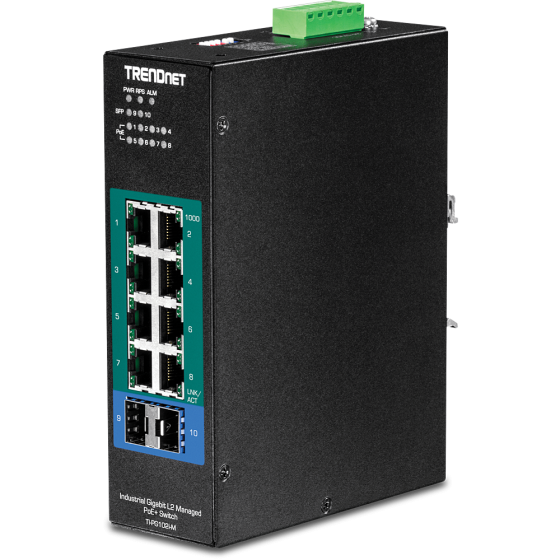

TRENDnet TI-PG102i-M 10 Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i-M, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -10° – 75° C (14° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

TRENDnet TI-PG102i-M Key Features

• 8 x Gigabit PoE+ ports: Provides efficient power delivery for connected devices, reducing the need for additional power sources.
• 2 x SFP slots: Expands connectivity options and allows for long-distance fiber connections, enhancing versatility.
• Supports 100/1000Base-FX fiber SFP modules: Offers flexibility in networking choices for different environments.
• PoE power budget: 240W@48VDC or 124W@24VDC: Sufficient power capacity for multiple PoE devices, ensuring stable performance.
• PoE alive check: Automatically restarts unresponsive PoE powered devices, minimizing downtime.
• 20Gbps switching capacity: Handles high data traffic efficiently, supporting a fast network environment.
• Hardened IP30 rated metal housing: Built to withstand harsh industrial conditions, ensuring durability.
• Includes DIN-rail mounting bracket: Simplifies installation in industrial settings, optimizing space.
• Operating temperature range of -10° – 75° C (14° – 167° F): Capable of functioning in extreme temperatures, providing reliability in various environments.
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping: Enhances network performance and control, ideal for robust network management.
• IEEE 802.1p QoS: Prioritizes network traffic, ensuring critical data is transmitted efficiently.
• Bandwidth control per port: Allows for tailored bandwidth management per device, optimizing network resources.
• Dual redundant power inputs: Ensures continuous operation with overload current protection to safeguard the device.
• Alarm output triggered by power failure: Provides alerts in case of power failure, enabling quick troubleshooting.
• Power supply sold separately: Flexibility with different models (TI-S24048, TI-S48048, TI-S12024) for power supply options.

TRENDnet TI-PG102i-M Specifications
