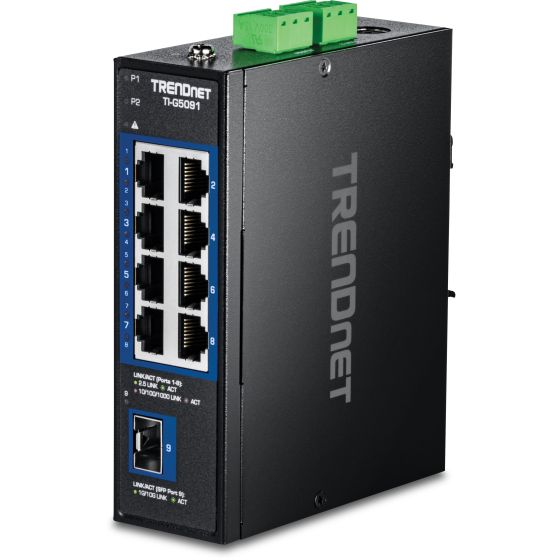

TRENDnet TI-G5091 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port

TRENDnet’s 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port, model TI-G5091, features a rugged IP50 rated metal enclosure designed for the harshest networking environments. It can withstand high levels of vibration and shock, and operates in extreme temperatures ranging from -40° - 75° C (-40° - 167° F). With redundant power inputs and a power failure alarm relay, it minimizes network downtime while offering multiple high-speed device connections.

TRENDnet TI-G5091 Multi-Gigabit Ports

• 8 x 2.5G ports: Enables high-speed device connections for efficient networking performance.
• 1 x 10G SFP+ port: Supports high-speed and long-distance fiber networking applications.

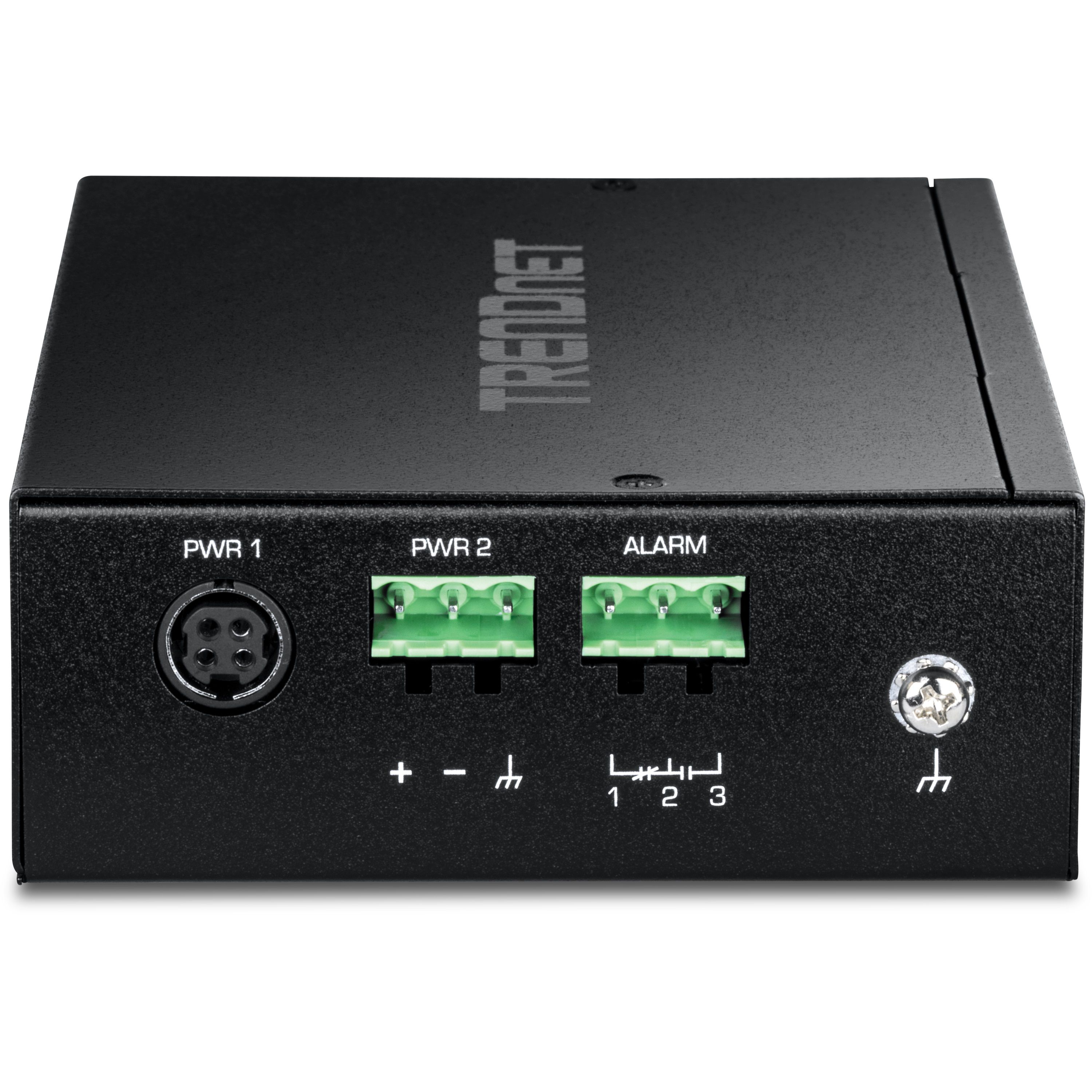

TRENDnet TI-G5091 Redundant Power

• Multiple power inputs: Provides redundancy with overload current protection, ensuring reliability (power supply sold separately).
• Alarm output: Alerts users of primary or redundant power failures to prevent downtime.

TRENDnet TI-G5091 Industrial Hardened Design

• Rugged IP50 rated housing: Built to operate smoothly in challenging environments with high vibrations and shocks.
• Extreme temperature tolerance: Designed to function in temperatures ranging from -40° – 75° C (-40° – 167° F).

TRENDnet TI-G5091 Additional Features

• Shock and Vibration Resistant: Complies with EN standards for durability under harsh conditions.
• Jumbo Frame Support: Allows for larger packets (up to 12KB) for improved data transmission performance.
• Electro Magnetic Compliance: Meets industrial EMC certification standards ensuring safe operation.
• Grounding Point: Provides high voltage protection for enhanced safety.
• 60Gbps Switching Capacity: Ensures robust network performance with high throughput.
• LED Indicator: Indicates port status for easy monitoring of network activity.
• Includes DIN-Rail and wall mounts: Offers versatility in installation options.
• NDAA / TAA compliant: Meets regulatory standards for secure networking equipment.

TRENDnet TI-G5091 Detailed Specifications
